1
Engine displacement
1000
2
Model
STRADA
3
Year
1994
4
Trim
Strada
5
Parts Catalog
Body
6
Parts Diagram
Parts Catalog
by
Main switch - steering lock
Body
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
17
18
18
19
20
21
22
23
24
26
27
28
29
30
31
32
33
34
35
1
Fuel tank
GU301002101
Not Available
1
Fuel tank
GU30100286
Not Available
1
Fuel tank
GU30100281
Not Available
1
Fuel tank
GU30100282
Not Available
1
Fuel tank
GU30100283
Not Available
2
Cover
GU14103955
Not Available
3
Cover
GU30104082
Not Available
3
Cover
GU30104083
Not Available
3
Cover
GU30104011
Not Available
3
Cover
GU30104081
Not Available
3
Tank cover, blank
GU141040551
£76,14 Unit Price incl. VAT
4
Locks
GU14736856
Not Available
5
Tab
GU18105001
Not Available
6
Collier
GU19104950
£1,76 Unit Price incl. VAT
7
Rubber spacer
GU19104336
£10,08 Unit Price incl. VAT
8
screw
GU98054210
£0,43 Unit Price incl. VAT
9
Rondelle élastique 5,3X10X0,5
GU95129100
£0,58 Unit Price incl. VAT
10
LH fuel cock
GU23105370
£35,96 Unit Price incl. VAT
11
RH fuel cock
GU23105470
Not Available
12
Fuel pipe
GU29106500
Not Available
13
Hose clamp
GU28108410
Not Available
14
Driver saddle
GU30460580
Not Available
15
Toolkit
GU28479660
Not Available
16
screw
GU98326021
Not Available
17
Rondelle
GU95000206
£1,02 Unit Price incl. VAT
18
Ecrou M6x1
GU92630106
£5,03 Unit Price incl. VAT
19
Rear fairing
GU30472686
Not Available
19
Rear fairing
GU30472684
Not Available
19
Rear fairing
GU304726801
Not Available
19
Rear fairing
GU304726811
Not Available
19
Rear fairing
GU30472682
Not Available
19
Rear fairing
GU30472683
Not Available
19
Rear fairing
GU30472685
Not Available
20
Pillion grab bar
GU30468510
Not Available
21
Handle support
GU30468410
Not Available
22
RH side panel
GU30476283
Not Available
22
RH side panel
GU30476282
Not Available
22
RH side panel
GU30476286
Not Available
22
RH side panel
GU304762811
Not Available
22
RH side panel
GU30476285
Not Available
22
RH side panel
GU304762801
Not Available
22
RH side panel
GU30476284
Not Available
23
LH side panel
GU30476383
Not Available
23
LH side panel
GU304763811
£187,70 Unit Price incl. VAT
23
LH side panel
GU30476386
Not Available
23
LH side panel
GU30476384
Not Available
23
LH side panel
GU304763801
Not Available
23
LH side panel
GU30476382
Not Available
23
LH side panel
GU30476385
Not Available
24
Decal "Strada 1000"arg.
GU30922080
Not Available
26
screw
GU98250616
Not Available
27
Decal "Strada 1000"arg.
GU30917880
Not Available
28
Washer
GU29577860
Not Available
29
Gasket
GU00823931070
£5,44 Unit Price incl. VAT
30
Hex screw
GU98054420
£0,49 Unit Price incl. VAT
31
Rondelle
GU95000208
£5,23 Unit Price incl. VAT
32
Ecrou
GU92630108
£1,02 Unit Price incl. VAT
33
Vis
GU98612320
£1,06 Unit Price incl. VAT
34
GOUJON
GU96506040
£15,97 Unit Price incl. VAT
35
Lock kit
GU28736861
Not Available

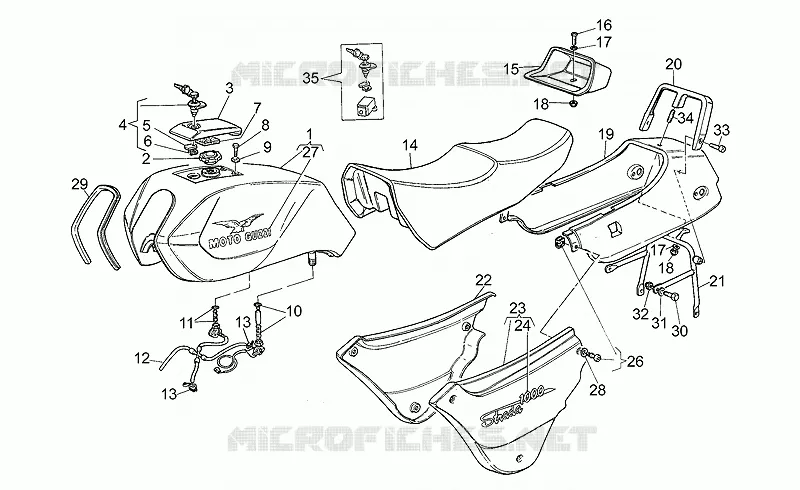

Find the detailed Body MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
