Engine displacement
1200
2
Model
STELVIO
3
Year
2010
4
Trim
Stelvio- NTX - ABS
5
Parts Catalog
Trans.cpl.-Cage
6
Parts Diagram
Parts Catalog
Lubrication
by
Front mud.-Pillar
Trans.cpl.-Cage
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
1
Upper dust cover
GU05358330
£172,86 Unit Price incl. VAT
2
Oil plug M12x1,5
GU05351230
£13,44 Unit Price incl. VAT
3
Washer
GU90718120
£2,35 Unit Price incl. VAT
4
Pin 6x20
GU95510620
£6,06 Unit Price incl. VAT
5
Hose clamp
GU05358130
£11,05 Unit Price incl. VAT
6
Upper dust cover
GU05358030
Not Available
7
Hose clamp
GU05358230
£15,18 Unit Price incl. VAT
8
Gasket 10x18x1,5
GU01528930
£4,21 Unit Price incl. VAT
9
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
10
Gasket ring 85x110x8BASL
GU90408511
£98,57 Unit Price incl. VAT
11
Hex socket screw M8x50
GU98680450
£1,54 Unit Price incl. VAT
12
Breather plug
GU05206530
£62,71 Unit Price incl. VAT
13
Gasket
GU10528900
£4,45 Unit Price incl. VAT
14
screw M3,9x6,5
GU99210406
£2,47 Unit Price incl. VAT
15
Ring
GU05358530
£14,50 Unit Price incl. VAT
16
Gasket
GU05358630
£45,85 Unit Price incl. VAT

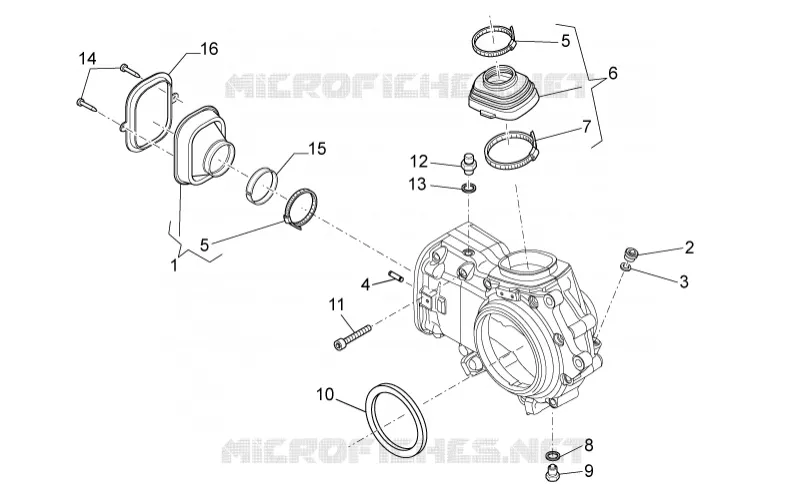

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
