Engine displacement
1200
2
Model
STELVIO
3
Year
2010
4
Trim
Stelvio- NTX - ABS
5
Parts Catalog
Head cover
6

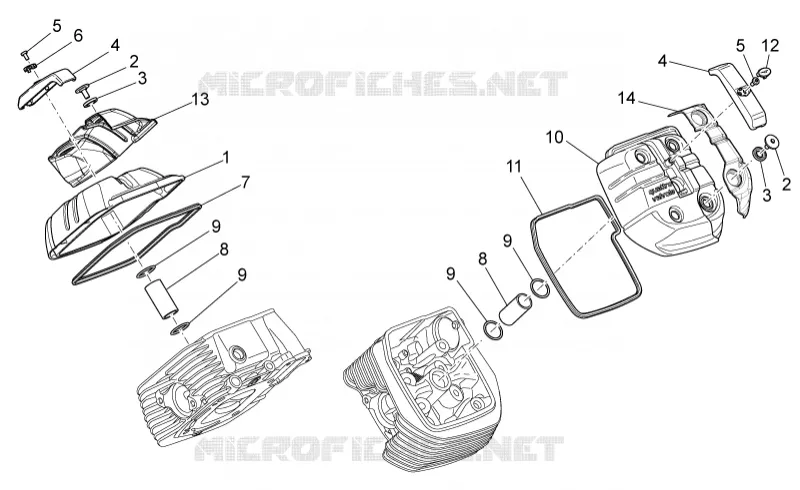

Parts Diagram
Parts Catalog
Rear handle - Luggage rack
by
Oil pump
Head cover
1
2
2
3
3
4
4
5
5
6
7
8
8
9
9
9
9
10
11
12
13
14
1
RH Head cover
872607
£259,76 Unit Price incl. VAT
2
Special screw
976591
£7,78 Unit Price incl. VAT
3
Damper drift
830249
£0,76 Unit Price incl. VAT
4
Spark plug cover
883493
£17,82 Unit Price incl. VAT
5
Hex socket screw
GU98230510
£1,02 Unit Price incl. VAT
6
RH Name plate "Moto Guzzi"
976560
£26,88 Unit Price incl. VAT
7
RH gasket
872742
£17,89 Unit Price incl. VAT
8
Spark plug pipe
873668
£11,78 Unit Price incl. VAT
9
O-ring 26X2,5
873626
£5,08 Unit Price incl. VAT
10
LH Head cover
872606
£259,76 Unit Price incl. VAT
11
LH gasket
872741
£17,89 Unit Price incl. VAT
12
LH Name plate "Moto Guzzi"
976559
£26,88 Unit Price incl. VAT
13
RH cover
873654
£20,26 Unit Price incl. VAT
14
LH cover
872740
£15,19 Unit Price incl. VAT
