Engine displacement
1200
2
Model
STELVIO
3
Year
2010
4
Trim
Stelvio- NTX - ABS
5
Parts Catalog
Blow-by system
6

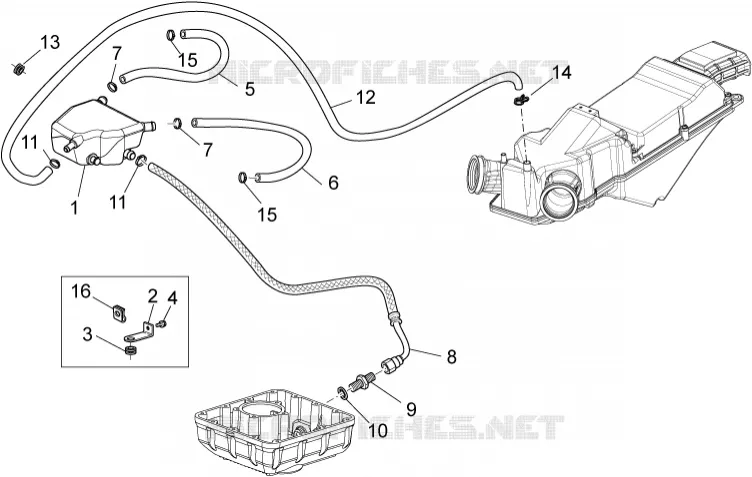

Parts Diagram
Parts Catalog
Front brake caliper
by
Headlight/Horn
Blow-by system
1
2
3
4
5
6
7
7
8
9
10
11
11
12
13
14
15
15
16
1
Housing
886098
£153,65 Unit Price incl. VAT
1
Housing
978047
£136,20 Unit Price incl. VAT
2
Plate
GU06412300
£14,28 Unit Price incl. VAT
3
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
4
Screw w/ flange
598839
£1,27 Unit Price incl. VAT
5
RH pipe
883034
£70,22 Unit Price incl. VAT
6
LH pipe
883035
£53,15 Unit Price incl. VAT
7
Hose clamp
GU93306017
£13,44 Unit Price incl. VAT
8
Pipe
883036
£78,88 Unit Price incl. VAT
9
Reduction
GU01161331
£18,25 Unit Price incl. VAT
10
Gasket
GU01154230
£2,34 Unit Price incl. VAT
11
White hose clip D.13,5x6
AP8102765
£6,40 Unit Price incl. VAT
12
Breather pipe
GU00823955080
£35,99 Unit Price incl. VAT
13
Rubber spacer
AP8220162
£5,44 Unit Price incl. VAT
14
Hose clamp
AP8102520
£2,08 Unit Price incl. VAT
15
Hose clip D.15,5x6,6
AP8101586
£3,97 Unit Price incl. VAT
16
Clip M6
GU28576591
£1,09 Unit Price incl. VAT
