Engine displacement
1200
2
Model
STELVIO
3
Year
2010
4
Trim
Stelvio- NTX - ABS
5
Parts Catalog
Driven shaft
6
Parts Diagram
Parts Catalog
Crank-case II
by
Oil radiator
Driven shaft
1
2
3
4
4
4
4
5
5
5
5
5
6
6
7
8
8
9
10
11
12
13
14
1
Driven shaft
GU05213631
£433,49 Unit Price incl. VAT
2
Ball bearing 20x52x15
GU92201822
£33,05 Unit Price incl. VAT
3
Gear 1a Z=38
GU05214231
£240,14 Unit Price incl. VAT
4
Roller cage 26x30x15,6
GU92252029
£24,59 Unit Price incl. VAT
5
Clearance washer
GU05214630
£10,73 Unit Price incl. VAT
6
Snap ring 30x1,2SW
GU90271230
£5,23 Unit Price incl. VAT
7
Gear 5a Z=30
GU05214031
£263,90 Unit Price incl. VAT
8
Snap ring 30x27,9
GU90271030
£0,83 Unit Price incl. VAT
9
Gear 3a Z=31
GU05214731
£246,35 Unit Price incl. VAT
10
Gear 4a Z=29
GU05215031
£222,49 Unit Price incl. VAT
11
Gear 6a Z=25
GU05220531
£197,04 Unit Price incl. VAT
12
Gear 2a Z=34
GU05214431
£242,46 Unit Price incl. VAT
13
Ball bearing 25x52x15
GU92201226
£50,18 Unit Price incl. VAT
14
Gasket ring 25X40X7
GU90412541
£22,12 Unit Price incl. VAT

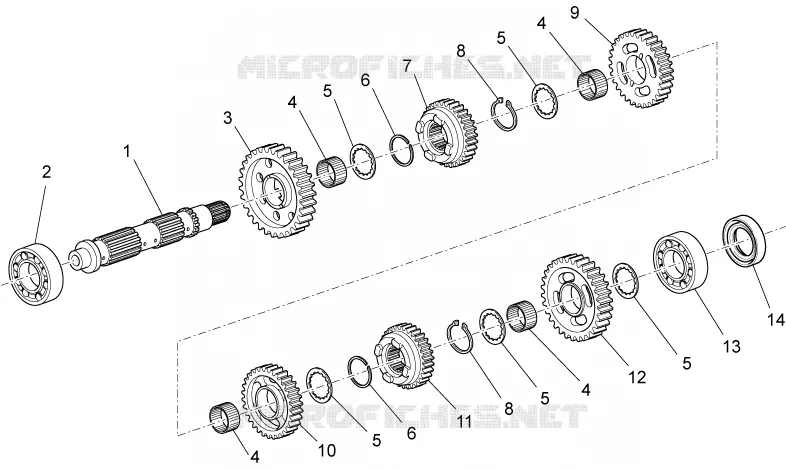

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
