Engine displacement
1200
2
Model
STELVIO
3
Year
2010
4
Trim
Stelvio- NTX - ABS
5
Parts Catalog

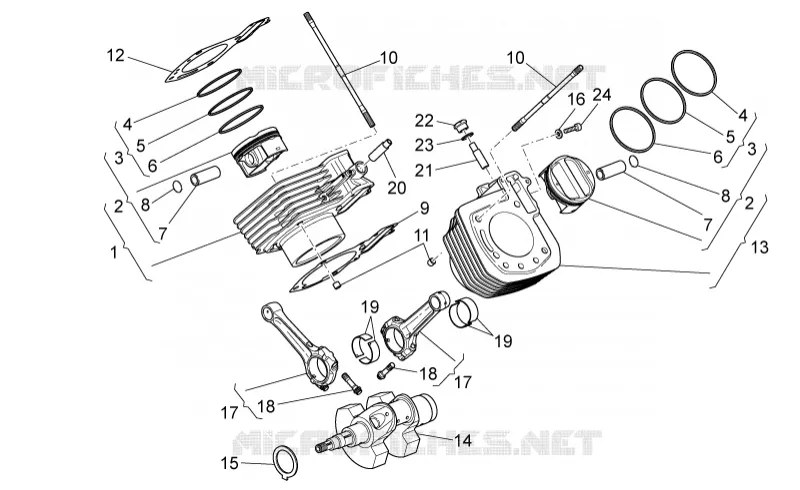

Drive shaft - Cylinder
6
Parts Diagram
Parts Catalog
Front mud.-Pillar
by
Taillight
Drive shaft - Cylinder
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
10
10
11
12
13
13
14
15
16
17
17
18
18
19
20
21
22
23
24
1
Cylinder with piston assy., RH
981008
£1 196,29 Unit Price incl. VAT
2
Piston D95 cpl
873667
£514,43 Unit Price incl. VAT
3
Pistonring set
981009
£199,69 Unit Price incl. VAT
4
Piston ring
874287
£59,27 Unit Price incl. VAT
5
Piston ring
874288
£42,07 Unit Price incl. VAT
6
Piston ring
874289
£57,59 Unit Price incl. VAT
7
Piston pin
874286
£99,76 Unit Price incl. VAT
8
Stop ring
874567
£14,84 Unit Price incl. VAT
9
Cylinder base gasket
976312
£36,76 Unit Price incl. VAT
10
Stud bolt
878275
Not Available
11
Pin 11,8X10
825597
£2,35 Unit Price incl. VAT
12
Cylinder head gasket 0,85 mm
874622
£80,96 Unit Price incl. VAT
12
Cylinder head gasket 0,65 mm
874621
£72,59 Unit Price incl. VAT
12
Cylinder head gasket 1,05 mm
976311
£83,30 Unit Price incl. VAT
13
Cylinder with piston assy., LH
981007
£1 420,44 Unit Price incl. VAT
14
Crankshaft cpl.
8762874
£461,48 Unit Price incl. VAT
15
Thrust washer
874293
£39,55 Unit Price incl. VAT
16
Washer 6,25x10x1,5
GU95100116
£1,60 Unit Price incl. VAT
17
Connecting rod cpl.
976006
£731,65 Unit Price incl. VAT
18
Connecting rod screw
849131
£32,42 Unit Price incl. VAT
19
Bearing half-shell 1,539-1,544
875244
£48,16 Unit Price incl. VAT
19
Bearing half-shell 1,535-1,540
875243
£48,16 Unit Price incl. VAT
20
RH chain tensioner
873689
£109,21 Unit Price incl. VAT
21
LH chain tensioner
873690
£109,21 Unit Price incl. VAT
22
Chain tension.plug
976342
£12,07 Unit Price incl. VAT
23
Washer
849866
£7,78 Unit Price incl. VAT
24
Hex socket screw M6x20
GU98350310
£1,26 Unit Price incl. VAT
