Engine displacement
1200
2
Model
STELVIO
3
Year
2010
4
Trim
Stelvio- NTX - ABS
5
Parts Catalog
Frame II
6
Parts Diagram
Parts Catalog
Gear box selector
by
Clutch shaft
Frame II
1
2
3
4
5
6
1
Front frame
886221
£593,41 Unit Price incl. VAT
1
Front frame
978022
Not Available
2
Hex socket screw M8x40
GU98680440
£1,02 Unit Price incl. VAT
3
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
4
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
5
Washer 6,4x12x1,2
GU95100141
£1,02 Unit Price incl. VAT
6
Nut with clip M6
GU28576592
£2,04 Unit Price incl. VAT

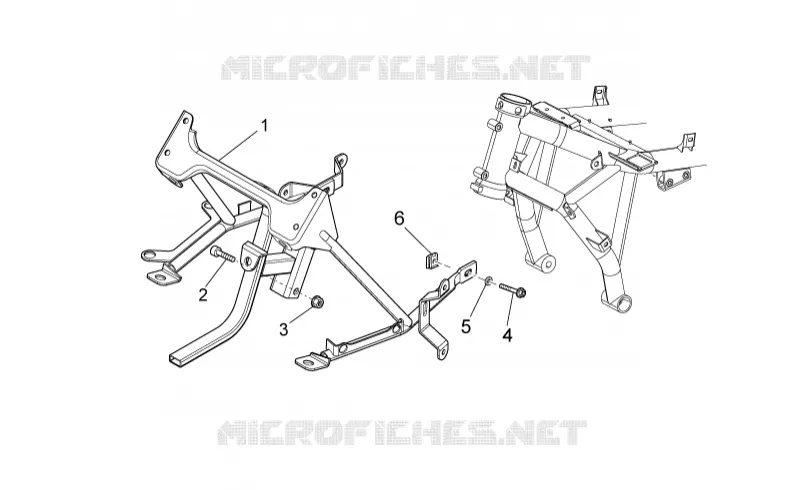

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
