Parts Catalog
Front footrests
6
Parts Diagram
Parts Catalog
Gear lever
by
ABS Brake system 2009
Front footrests
1
2
3
4
5
5
6
6
7
7
8
8
9
9
10
11
12
12
13
13
14
14
14
14
14
14
14
15
16
17
18
19
1
RH foot rest support
883102
£141,22 Unit Price incl. VAT
2
LH footrest support
883103
£403,63 Unit Price incl. VAT
3
RH Foot rests
AP8145034
Not Available
3
RH Foot rests
886184
£67,25 Unit Price incl. VAT
4
Support rubber part
GU32443210
£10,92 Unit Price incl. VAT
4
Footrest rubber
AP8120831
£18,66 Unit Price incl. VAT
5
Plate
AP8134276
£10,45 Unit Price incl. VAT
5
Plate
GU32441210
£10,54 Unit Price incl. VAT
6
Footrest return spring
AP8221277
£10,54 Unit Price incl. VAT
7
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
8
Pin
AP8121567
£19,96 Unit Price incl. VAT
9
Stop ring
AP8152409
£1,38 Unit Price incl. VAT
10
LH Foot rests
886185
£67,25 Unit Price incl. VAT
10
LH Foot rests
AP8145035
Not Available
11
Support rubber part
GU32443211
£10,92 Unit Price incl. VAT
11
Footrest rubber
AP8120831
£18,66 Unit Price incl. VAT
12
Hex socket screw M8x35
GU98680435
£4,98 Unit Price incl. VAT
13
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
14
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
15
screw
GU98680480
£4,98 Unit Price incl. VAT
16
Hex socket screw M8x25
GU98682425
£0,25 Unit Price incl. VAT
17
screw
GU98680465
£5,03 Unit Price incl. VAT
18
Hex socket screw M8x60
GU98680460
£5,28 Unit Price incl. VAT
19
screw
GU98620485
Not Available

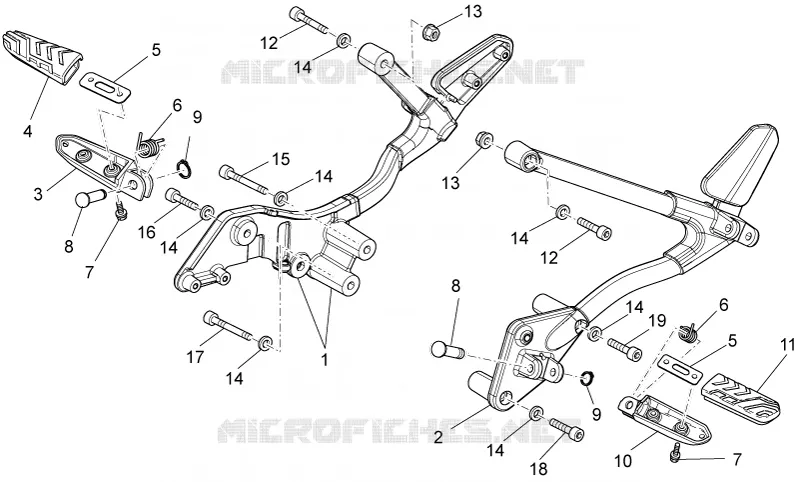

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
