Engine displacement
1200
2
Model
STELVIO
3
Year
2010
4
Trim
Stelvio- NTX - ABS
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
ABS Brake system 2010
by
Fuel vapour recover system
Front wheel
1
2
3
3
4
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Front wheel 2,50x19"
883009
£496,09 Unit Price incl. VAT
2
Tyre
0000000
Not Available
3
Ball bearing 25x47x12
AP8125777
£10,52 Unit Price incl. VAT
4
Gasket ring 30x47x7
AP8125773
£2,63 Unit Price incl. VAT
5
Spacer
978516
£42,07 Unit Price incl. VAT
6
Spoke
978864
£7,03 Unit Price incl. VAT
7
Nipples L=34
978810
£13,21 Unit Price incl. VAT
7
Nipples L=36
883287
£7,03 Unit Price incl. VAT
8
Front brake disc SX
896012
Not Available
8
Front brake disc
978764
Not Available
8
Front brake disc SX
B044280
Not Available
9
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
10
Front wheel spindle
978030
£107,18 Unit Price incl. VAT
11
Nut
GU01612190
£10,82 Unit Price incl. VAT
12
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
13
Spacer
GU06616300
£13,40 Unit Price incl. VAT
14
Tubeless tyre valve
978814
£23,30 Unit Price incl. VAT
14
Tubeless tyre valve
AP8101744
£14,65 Unit Price incl. VAT
15
Snap ring
978811
£2,47 Unit Price incl. VAT
16
O-ring OR2025
GU90706061
£2,47 Unit Price incl. VAT
17
Front brake disc DX
896011
Not Available
17
Front brake disc
883372
£331,39 Unit Price incl. VAT
17
RH front brake disc
B044279
Not Available
18
Phonic wheel
GU05681430
£83,71 Unit Price incl. VAT
18
Phonic wheel
AP8128189
£104,45 Unit Price incl. VAT
19
Screw
GU98250510
£7,60 Unit Price incl. VAT
20
Sensor ABS
859792
Not Available
20
Sensor abs
AP8127469
£146,02 Unit Price incl. VAT
21
Screw w/ flange
598839
£1,27 Unit Price incl. VAT
22
Hose clamp 2,4x92
GU49609601
£0,90 Unit Price incl. VAT
23
Fairlead
859777
£8,06 Unit Price incl. VAT
24
Screw M4x6
AP8201749
£1,00 Unit Price incl. VAT
25
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
26
Sensor ABS
859792
Not Available
27
Phonic wheel
AP8128189
£104,45 Unit Price incl. VAT
28
Fairlead
894704
£13,38 Unit Price incl. VAT

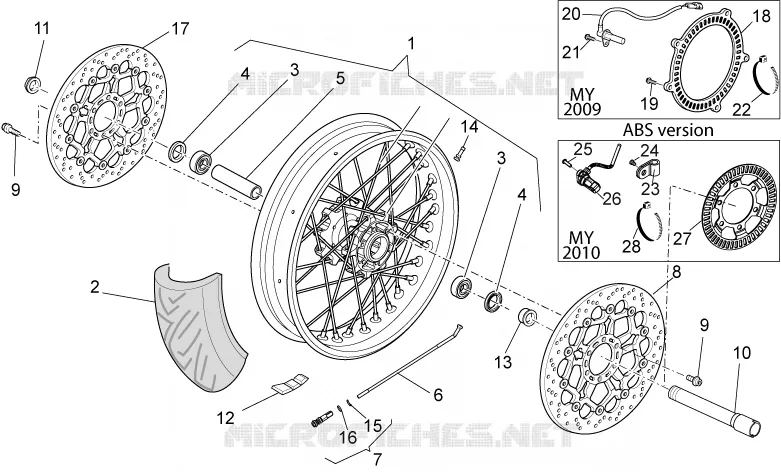

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
