Engine displacement
1200
2
Model
STELVIO
3
Year
2010
4
Trim
Stelvio- NTX - ABS
5
Parts Catalog
Lock hardware kit
6

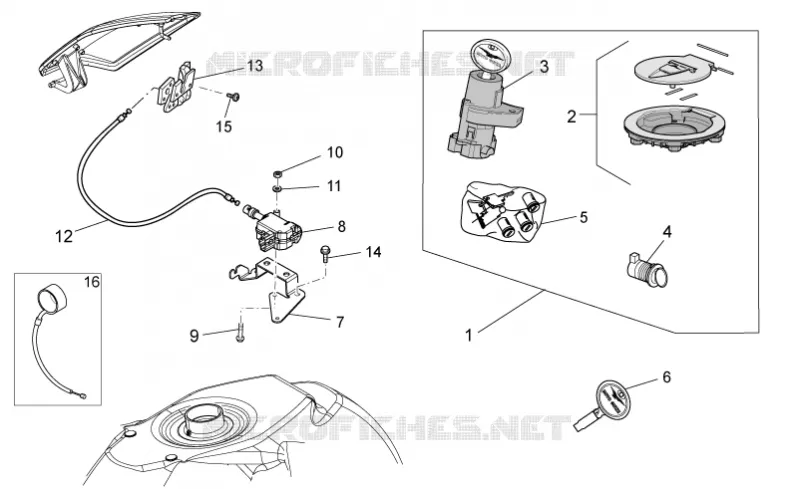

Parts Diagram
Parts Catalog
Specific tools II
by
Front master cilinder
Lock hardware kit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Lock kit
977666
Not Available
1
Lock kit
B063858
£535,42 Unit Price incl. VAT
2
Tank cap
GU05103930
£257,51 Unit Price incl. VAT
3
Main switch - steering lock
GU05782530
£245,18 Unit Price incl. VAT
3
Main switch - steering lock
B063859
Not Available
4
Saddle lock
GU05466830
£132,94 Unit Price incl. VAT
5
Rotor kit with key
978220
£131,69 Unit Price incl. VAT
6
Non indented key blank
977918
£115,33 Unit Price incl. VAT
7
Support plate
883038
£37,02 Unit Price incl. VAT
8
Front box lock
AP8127650
£161,42 Unit Price incl. VAT
9
Screw M4x35
883042
£0,66 Unit Price incl. VAT
10
Nut
GU92630204
£1,26 Unit Price incl. VAT
11
Washer
GU95021204
£1,86 Unit Price incl. VAT
12
Lock cable
883080
£21,08 Unit Price incl. VAT
13
Box lock
CM023705
£19,39 Unit Price incl. VAT
14
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
15
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
16
Immobilizer antenna
981087
£82,94 Unit Price incl. VAT
