Engine displacement
1200
2
Model
STELVIO
3
Year
2010
4
Trim
Stelvio- NTX - ABS
5
Parts Catalog
Steering
6

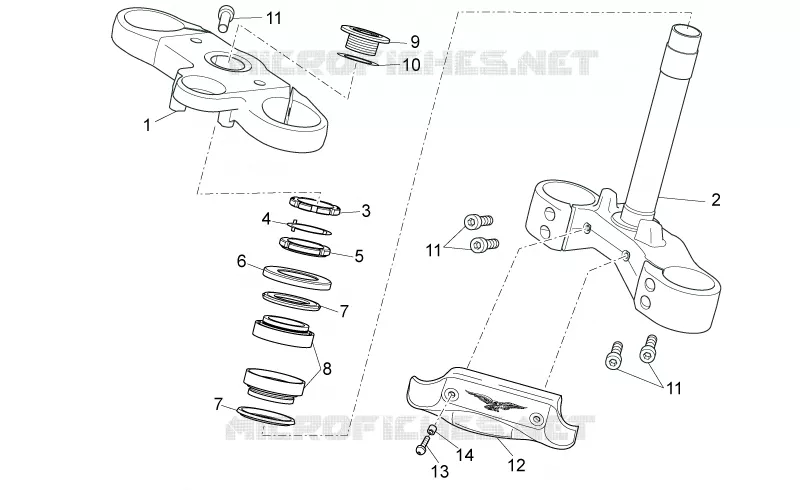

Parts Diagram
Parts Catalog
Rear body II
by
Rear master cylinder
Steering
1
2
3
4
5
6
7
7
8
9
10
11
11
11
12
13
14
1
Fork upper plate D45
886199
£395,04 Unit Price incl. VAT
1
Fork upper plate
978016
£173,05 Unit Price incl. VAT
2
Stem base D45
886202
£491,10 Unit Price incl. VAT
2
Stem base
978018
£299,96 Unit Price incl. VAT
3
Return ring nut
AP8123643
£27,53 Unit Price incl. VAT
4
Steering security plate
AP8121207
£28,55 Unit Price incl. VAT
5
Ring nut
AP8123642
£25,34 Unit Price incl. VAT
6
Dust cover ring
AP8123644
£6,36 Unit Price incl. VAT
7
Dust cover ring
AP8123641
£13,74 Unit Price incl. VAT
8
Axial ball bearing
AP8110077
Not Available
9
Upper plate fixing bush
AP8121205
£38,83 Unit Price incl. VAT
10
Stem plug washer
AP8152384
£2,20 Unit Price incl. VAT
11
Hex socket screw M8x30
GU98682430
£0,70 Unit Price incl. VAT
12
Brake hose fixing plate
GU05658431
£16,96 Unit Price incl. VAT
13
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
14
Bushing 5,3x8x7,1
AP8221036
£0,73 Unit Price incl. VAT
