Engine displacement
1200
2
Model
STELVIO
3
Year
2015
4
Trim
Stelvio 8V STD - NTX
5
Parts Catalog
Throttle body
6

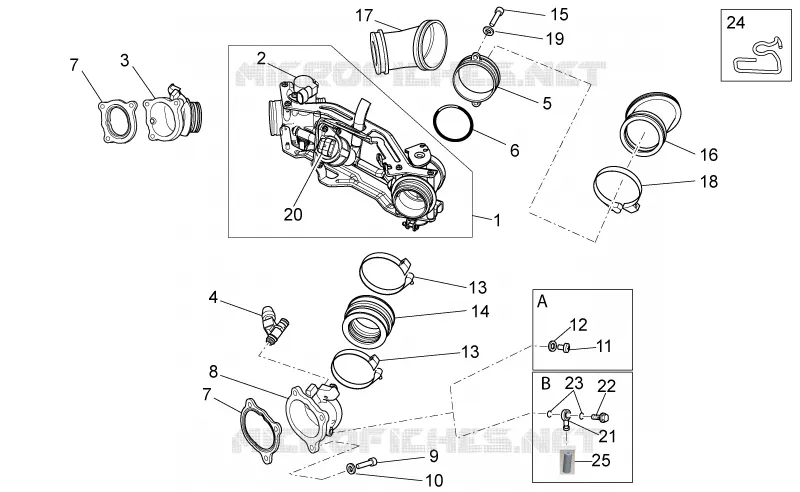

Parts Diagram
Parts Catalog
Connecting rod - rear shock abs.
by
Primary gear shaft
Throttle body
1
2
3
4
5
6
7
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Throttle body
880270
£2 481,76 Unit Price incl. VAT
2
Potentiometer
981010
£487,21 Unit Price incl. VAT
3
RH manifold
879878
Not Available
4
Injector kit complete
CM074706
£136,14 Unit Price incl. VAT
5
Flange
976498
£25,25 Unit Price incl. VAT
6
O-ring 53,7x1,78
976566
£2,47 Unit Price incl. VAT
7
Inl. manifold gasket
873879
£12,56 Unit Price incl. VAT
8
LH manifold
879877
Not Available
9
Low head socket screw M6x25 M6x25
GU98882325
£2,47 Unit Price incl. VAT
10
Washer 6,15x11x0,8
GU95008206
£2,48 Unit Price incl. VAT
11
Hex socket screw M6x20
GU98350310
£1,26 Unit Price incl. VAT
12
Washer 6,25x10x1,5
GU95100116
£1,60 Unit Price incl. VAT
13
Hose clamp 61/65,5
GU93305061
£10,04 Unit Price incl. VAT
14
Hose
873861
£12,18 Unit Price incl. VAT
15
Hex socket screw M5x12
GU98682212
£1,06 Unit Price incl. VAT
16
Intake hose RH
877057
£39,28 Unit Price incl. VAT
17
Intake hose LH
877056
£39,28 Unit Price incl. VAT
18
Clamp 50x90x9
GU93306050
£10,93 Unit Price incl. VAT
19
Washer 5,3X10X1
GU95008305
£2,47 Unit Price incl. VAT
20
Min.regulation engine
896540
Not Available
21
Joint
GU95963062
£28,25 Unit Price incl. VAT
22
Bored screw
GU95990023
£19,60 Unit Price incl. VAT
23
O-ring 6x1
GU90706009
£2,48 Unit Price incl. VAT
24
Fairlead
887209
£7,07 Unit Price incl. VAT
25
Cover
487567
£4,13 Unit Price incl. VAT
