Engine displacement
1200
2
Model
STELVIO
3
Year
2015
4
Trim
Stelvio 8V STD - NTX
5
Parts Catalog
Steering
6
Parts Diagram
Parts Catalog
Clutch
by
Fuel vapour recover system
Steering
1
2
3
4
5
6
7
7
8
9
10
11
11
11
12
13
14
1
Plaque support
886199
£395,04 Unit Price incl. VAT
2
Plaque inf.
886202
£491,10 Unit Price incl. VAT
3
Contre-bague
AP8123643
£27,53 Unit Price incl. VAT
4
Plaq.sécu.direction
AP8121207
£28,55 Unit Price incl. VAT
5
Bague
AP8123642
£25,34 Unit Price incl. VAT
6
Anneau pare-pouss.
AP8123644
£6,36 Unit Price incl. VAT
7
Anneau pare-pouss.
AP8123641
£13,74 Unit Price incl. VAT
8
Axial ball bearing
AP8110077
Not Available
9
Douille fx. pl. sup.
AP8121205
£38,83 Unit Price incl. VAT
10
Rondelle bouchon fourreau
AP8152384
£2,20 Unit Price incl. VAT
11
Vis M8x30
GU98682430
£0,70 Unit Price incl. VAT
12
Pla.fix.tube frein
GU05658431
£16,96 Unit Price incl. VAT
13
Vis bride
AP8152298
£3,48 Unit Price incl. VAT
14
Bague 5,3x8x7,1
AP8221036
£0,73 Unit Price incl. VAT

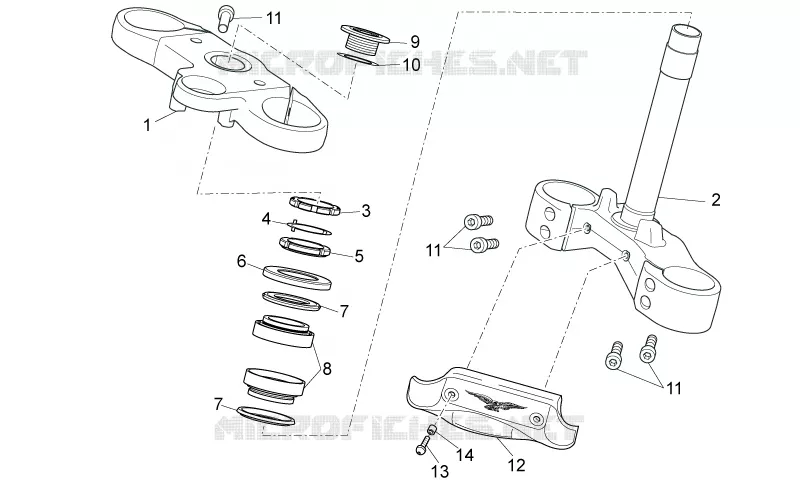

Find the detailed Steering MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
