Engine displacement
1200
2
Model
STELVIO
3
Year
2014
4
Trim
Stelvio 8V STD - NTX
5
Parts Catalog
Handlebar - Controls
6
Parts Diagram
Parts Catalog
Clutch shaft
by
Crank-case I
Handlebar - Controls
1
2
3
4
4
5
6
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
24
1
Handlebar
978040
£413,03 Unit Price incl. VAT
2
Upper U-bolt
978821
£124,46 Unit Price incl. VAT
3
Screw M8x30
GU98700430
£7,98 Unit Price incl. VAT
4
Lower U-bolt
978042
£131,71 Unit Price incl. VAT
5
Screw w/ flange
AP8152325
£2,66 Unit Price incl. VAT
6
LH lights selector
886229
£130,56 Unit Price incl. VAT
7
LH hand grip
AP8118579
£22,01 Unit Price incl. VAT
8
Anti.v weight, black
AP8104572
£21,46 Unit Price incl. VAT
9
Hex socket screw M6x70
AP8150342
£1,33 Unit Price incl. VAT
10
Anti vib.weight trailing
886234
£12,07 Unit Price incl. VAT
11
Engine stop-start device
883543
£240,36 Unit Price incl. VAT
11
Engine stop-start device
886159
£232,30 Unit Price incl. VAT
12
Throttle with hand grip
GU01603480
£30,84 Unit Price incl. VAT
13
RH rearview mirror
AP8104921
£38,51 Unit Price incl. VAT
14
LH rearview mirror
AP8104922
£38,51 Unit Price incl. VAT
15
Gas trasmission delivery
85222R
Not Available
16
Gas trasmission return
85223R
Not Available
17
Hose clamp L46 mm
GU01609630
£3,95 Unit Price incl. VAT
18
Self-tap screw
978059
£2,47 Unit Price incl. VAT
19
RH rearview mirror
883460
Not Available
20
LH rearview mirror
883461
Not Available
21
Lamp 12V-15W
981101
£12,28 Unit Price incl. VAT
22
RH.turn indicator lens
981099
£14,70 Unit Price incl. VAT
23
LH turn indicator lens
981100
£14,70 Unit Price incl. VAT
24
Mirror mounting clump
884312
£18,66 Unit Price incl. VAT

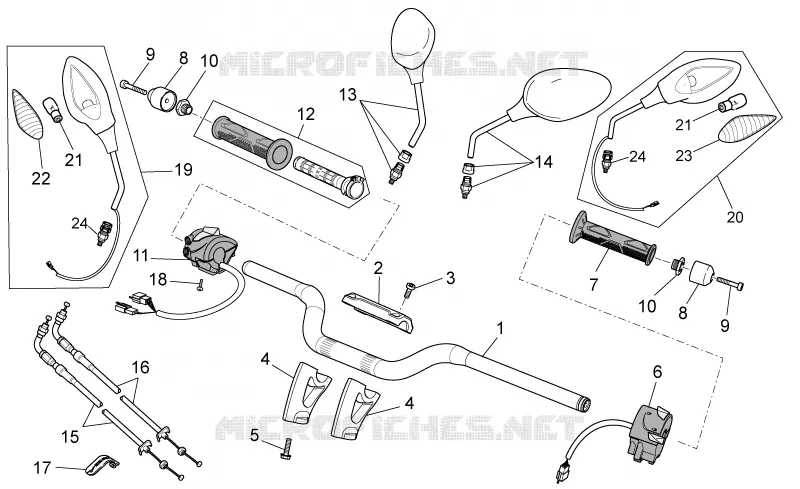

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
