Engine displacement
1200
2
Model
STELVIO
3
Year
2011
4
Trim
Stelvio 8V STD - NTX
5
Parts Catalog
Front footrests
6

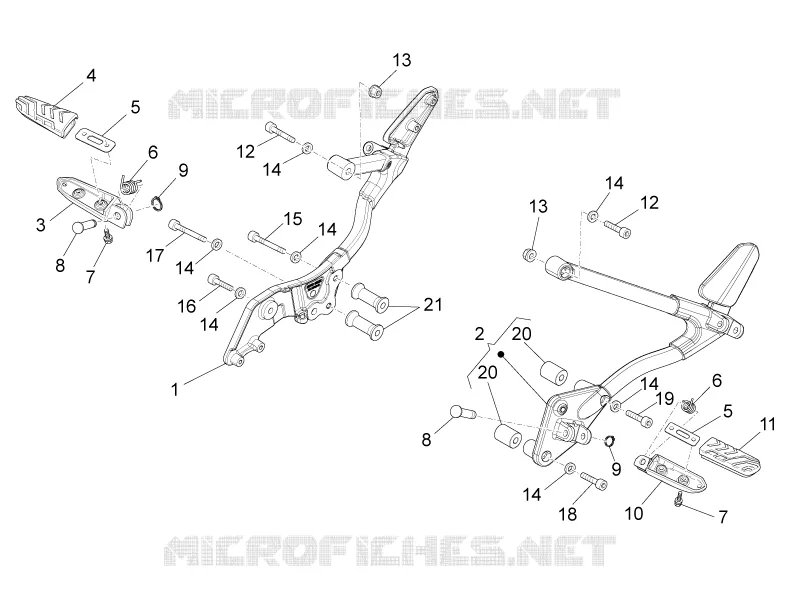

Parts Diagram
Parts Catalog
Oil pump
by
Exhaust unit
Front footrests
1
2
3
4
5
5
6
6
7
7
8
8
9
9
10
11
12
12
13
13
14
14
14
14
14
14
14
15
16
17
18
19
20
20
21
1
RH foot rest support
886987
Not Available
2
LH footrest support
883103
£403,63 Unit Price incl. VAT
3
RH Foot rests
886184
£67,25 Unit Price incl. VAT
4
Footrest rubber
AP8120831
£18,66 Unit Price incl. VAT
5
Plate
AP8134276
£10,45 Unit Price incl. VAT
6
Footrest return spring
AP8221277
£10,54 Unit Price incl. VAT
7
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
8
Pin
AP8121567
£19,96 Unit Price incl. VAT
9
Stop ring
AP8152409
£1,38 Unit Price incl. VAT
10
LH Foot rests
886185
£67,25 Unit Price incl. VAT
11
Footrest rubber
AP8120831
£18,66 Unit Price incl. VAT
12
Hex socket screw M8x35
GU98680435
£4,98 Unit Price incl. VAT
13
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
14
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
15
screw
GU98680480
£4,98 Unit Price incl. VAT
16
Hex socket screw M8x25
GU98682425
£0,25 Unit Price incl. VAT
17
screw
GU98680465
£5,03 Unit Price incl. VAT
18
Hex socket screw M8x60
GU98680460
£5,28 Unit Price incl. VAT
19
screw
GU98620485
Not Available
20
Spacer
883107
£33,43 Unit Price incl. VAT
21
Spacer
886933
£16,81 Unit Price incl. VAT
