1
Engine displacement
1000
2
Model
SP
3
Year
1983
4
Trim
SP II 1000
5
Parts Catalog
Rear brake m.cyl. mod.group
6
Parts Diagram
Parts Catalog
Foot rests - Lateral stand
by
Taillight
Rear brake m.cyl. mod.group
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
32
33
33
33
34
35
36
37
38
39
40
41
42
1
Rear master cylinder
GU30666960
£128,08 Unit Price incl. VAT
2
screw
GU98622345
Not Available
3
Washer 6,4x10x0,7
GU14217901
Not Available
4
Spacer
GU91180718
£10,08 Unit Price incl. VAT
5
Support plate
GU28666748
Not Available
6
Hex screw
GU98054416
£1,02 Unit Price incl. VAT
7
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
8
Brake oil tank
GU30665000
Not Available
9
Tank cover
GU30661100
£46,26 Unit Price incl. VAT
10
screw
GU98230616
£13,40 Unit Price incl. VAT
11
Spacer
GU91180607
Not Available
12
Brake lever
GU28676548
Not Available
13
Bushing
GU28252010
Not Available
14
Rubber spacer
GU14251001
£3,65 Unit Price incl. VAT
15
screw
GU30252360
£68,50 Unit Price incl. VAT
16
Washer
GU95100409
Not Available
17
Cap
GU17093850
Not Available
18
Nut
GU92701120
£2,00 Unit Price incl. VAT
19
O-ring
GU90706108
£1,16 Unit Price incl. VAT
20
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
21
Nut
GU92602206
£1,68 Unit Price incl. VAT
22
Pin
GU95770265
Not Available
23
Washer
GU95129110
Not Available
24
Split pin
GU95500222
£1,26 Unit Price incl. VAT
25
Change gear tie rod compl.
GU28675048
Not Available
26
Nut
GU92700073
Not Available
27
Fork
GU95740175
£65,20 Unit Price incl. VAT
28
Spring washer
GU95129130
£10,73 Unit Price incl. VAT
29
Washer 7,5x13x1
GU95100173
£0,95 Unit Price incl. VAT
30
Oil pipe
GU00823950050
£26,57 Unit Price incl. VAT
31
Divider-pump pipe
GU28658500
Not Available
32
Oil pipe screw *
GU95990028
£14,99 Unit Price incl. VAT
33
Gasket
GU25656100
£1,57 Unit Price incl. VAT
34
Safety plate
GU95184014
£4,78 Unit Price incl. VAT
35
Switch
GU63657000
£54,85 Unit Price incl. VAT
36
Cap
GU12735100
£2,12 Unit Price incl. VAT
37
Rubber spacer
GU91551085
Not Available
38
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
39
Hose clamp
GU19157800
Not Available
40
Pump connection overhaul unit
GU19659500
£22,94 Unit Price incl. VAT
41
Tie rod
GU28675148
Not Available
42
Rear brake master cyl.kit
GU28999648
Not Available

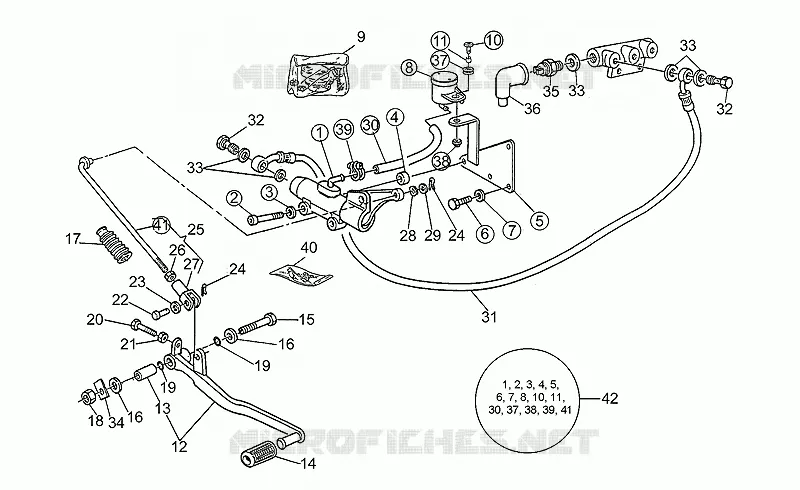

Find the detailed Rear brake m.cyl. mod.group MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
