Parts Catalog
Transmission cage
6
Parts Diagram
Parts Catalog
Oil pump 1991-D
by
Gearbox 1991-D
Transmission cage
1
2
3
3
4
4
5
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
26
27
28
29
30
31
32
33
34
35
36
36
37
38
1
Transmission cage
GU30200260
Not Available
2
Bague d'étanchéité
GU90403547
£10,73 Unit Price incl. VAT
3
Roulement à rouleaux
GU92256218
£105,14 Unit Price incl. VAT
4
Plaque
GU14213803
£65,10 Unit Price incl. VAT
5
Hex socket screw
GU98622316
Not Available
6
Washer 6,4x10x0,7
GU14217901
Not Available
7
Ball bearing AF/AS 25x52
GU92218424
Not Available
8
Roller bearing AS 17x47x14
GU92234717
£182,04 Unit Price incl. VAT
9
Goupille
GU95512081
£4,34 Unit Price incl. VAT
10
Gasket
GU14201110
£2,00 Unit Price incl. VAT
11
Box cover
GU30200860
Not Available
12
Joint torique 13,95x2,92
GU90706140
£1,25 Unit Price incl. VAT
13
Ball bearing AP 17x47x14
GU92201417
Not Available
14
Vis
GU14237800
£21,61 Unit Price incl. VAT
15
Low nut M12x1,25
GU92602512
£1,57 Unit Price incl. VAT
16
Vis M6X25
GU98622325
£1,02 Unit Price incl. VAT
17
Vis M6X35
GU98620335
£1,14 Unit Price incl. VAT
18
Neutral indicator switch
GU12207200
Not Available
19
Gasket
GU12207700
Not Available
20
Washer 6,4x10x0,7
GU14217901
Not Available
21
screw
GU98822316
£1,04 Unit Price incl. VAT
22
Bouchon
GU93180220
£3,68 Unit Price incl. VAT
23
Bouchon huile
GU12022600
£36,13 Unit Price incl. VAT
24
Joint torique 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
25
Bouchon
GU95980610
£26,23 Unit Price incl. VAT
26
Garniture
GU10528900
£4,45 Unit Price incl. VAT
27
Oil breather valve
GU14204955
£21,26 Unit Price incl. VAT
28
Pipe
GU00823942070
Not Available
29
Retour levier démarrage
GU94321067
£1,86 Unit Price incl. VAT
30
Encliquetage
GU55234700
£82,48 Unit Price incl. VAT
31
Gasket ring 35x47x7/6,5
GU90403548
Not Available
32
Stud bolt
GU96508032
£11,62 Unit Price incl. VAT
33
Ecrou
GU92630108
£1,02 Unit Price incl. VAT
34
Joint 8,25x15x1
GU12154200
£2,45 Unit Price incl. VAT
35
screw
GU98822325
Not Available
36
Oil level plug
GU95980214
£12,80 Unit Price incl. VAT
37
Bouchon
GU93180245
£2,63 Unit Price incl. VAT
38
Gearbox assy., grey
GU03991500
Not Available

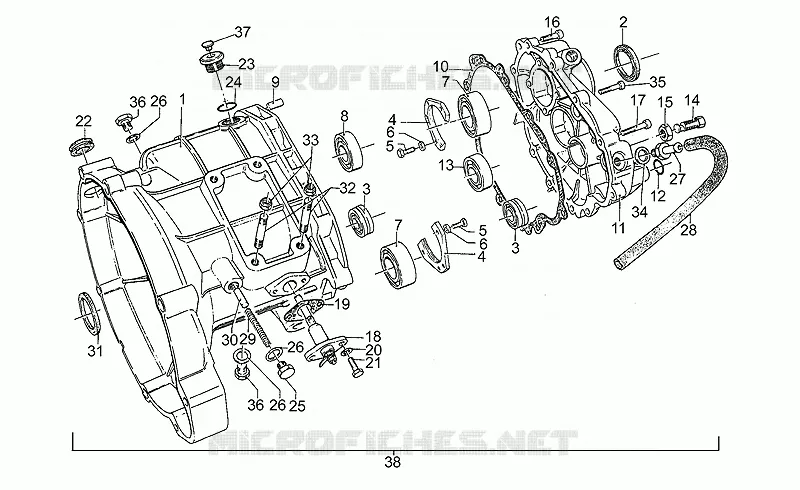

Find the detailed Transmission cage MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
