1
Engine displacement
350
2
Model
NTX
3
Year
1990
4
Trim
NTX
5
Parts Catalog
Gear box
6
Parts Diagram
Parts Catalog
Drive shaft
by
Carburettors
Gear box
1
2
3
3
3
3
3
4
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
26
26
27
29
30
31
32
33
34
35
36
36
36
37
37
37
38
39
40
41
42
42
43
43
44
45
46
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
62
63
64
65
65
66
66
67
1
ARBRE PRIMAIRE
GU19210520
£72,68 Unit Price incl. VAT
2
Gear 5a AS Z=22
GU19212020
Not Available
3
Thrust washer mm1
GU19215420
Not Available
4
Circlip
GU90271220
Not Available
5
Gear 4a AS Z=22
GU19211820
Not Available
6
Gear 3a AS Z=18
GU19211420
Not Available
7
Thrust washer
GU19214620
Not Available
8
Gear
GU19211320
Not Available
9
Washer
GU19212800
£7,70 Unit Price incl. VAT
10
Ball bearing
GU92201415
Not Available
11
Rondelle d'appui
GU39238100
£1,58 Unit Price incl. VAT
12
Nut
GU10054100
£12,77 Unit Price incl. VAT
13
Roulement 20X47X14
GU92201220
£39,08 Unit Price incl. VAT
14
Driven shaft
GU19213620
Not Available
15
Entretoise
GU19212900
£17,84 Unit Price incl. VAT
16
Roulement 20X47X14
GU92201220
£39,08 Unit Price incl. VAT
17
Entretoise
GU19213720
£25,92 Unit Price incl. VAT
18
Bague d'étanchéité 18,77X1,78
GU90706188
£1,39 Unit Price incl. VAT
19
Bague seeger
GU90271121
£1,39 Unit Price incl. VAT
20
Gear
GU19214501
£247,97 Unit Price incl. VAT
21
Gear
GU19214820
Not Available
22
Gear
GU19215121
£134,09 Unit Price incl. VAT
23
Gear
GU19215220
Not Available
24
Gear
GU19214001
Not Available
26
Cale
GU35214300
£4,54 Unit Price incl. VAT
27
Ball bearing
GU92201415
Not Available
29
Circlip
GU90271115
£1,22 Unit Price incl. VAT
30
ARBRE
GU19234420
£72,68 Unit Price incl. VAT
31
Tige
GU19234600
£10,20 Unit Price incl. VAT
32
Cale 1 mm
GU19355300
£13,21 Unit Price incl. VAT
33
Anneau élastique
GU90271020
£0,85 Unit Price incl. VAT
34
Fork AP
GU19231220
Not Available
35
FOURCHETTE
GU19231020
£370,06 Unit Price incl. VAT
36
ROULEAU
GU92297909
£2,29 Unit Price incl. VAT
37
Goupille
GU95520316
£1,62 Unit Price incl. VAT
38
Pre-selector kit
GU20999520
Not Available
39
Spring
GU60238200
Not Available
39
Spring
GU28238261
Not Available
40
Entretoise
GU20208520
£10,73 Unit Price incl. VAT
40
Bushing
GU91182010
£9,62 Unit Price incl. VAT
41
Shift lever
GU19258220
Not Available
42
screw
GU98072325
Not Available
43
Notched washer
GU95021106
Not Available
44
Tirant
GU18257950
£13,28 Unit Price incl. VAT
45
Fork
GU12629800
Not Available
46
Nut
GU95602206
Not Available
47
Washer
GU95129110
Not Available
48
Ball joint
GU18258101
Not Available
49
Goupille
GU95500222
£1,26 Unit Price incl. VAT
50
Pin
GU95770265
Not Available
51
Lever
GU19256920
Not Available
52
Spring washer
GU60013800
Not Available
53
Ecrou M6x1
GU92630106
£5,03 Unit Price incl. VAT
54
Gear lever
GU27250815
Not Available
55
Rubber spacer
GU30251025
£1,52 Unit Price incl. VAT
56
Rondelle élastique
GU95129260
£2,59 Unit Price incl. VAT
57
Idle gear Z=25
GU27211111
Not Available
58
Nut
GU10054100
£12,77 Unit Price incl. VAT
59
Rondelle d'appui
GU39238100
£1,58 Unit Price incl. VAT
60
Change gear tie rod compl.
GU19257701
Not Available
61
Spacer
GU27250715
Not Available
62
Fork
GU28258160
Not Available
63
Stud bolt
GU27257715
Not Available
64
Rondelle
GU95000206
£1,02 Unit Price incl. VAT
65
Ecrou M6x1
GU92630106
£5,03 Unit Price incl. VAT
66
Washer
GU19214320
Not Available
67
Bushing
GU19266720
Not Available

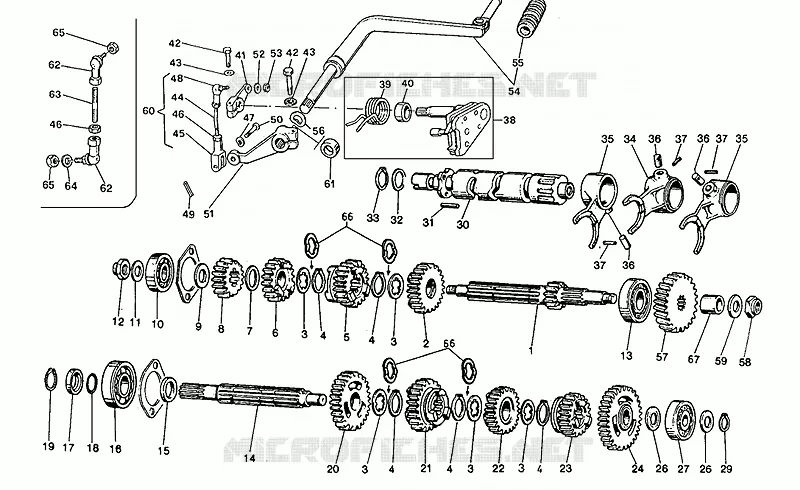

Find the detailed Gear box MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
