Engine displacement
350
2
Model
NTX
3
Year
1988
4
Trim
NTX
5
Parts Catalog
Fuel supply
6
Parts Diagram
Parts Catalog
Frame
by
Exhaust unit
Fuel supply
1
2
3
4
5
6
7
8
8
9
9
10
11
11
12
13
14
15
16
17
18
19
20
1
Carburettor RH PHBH 28
GU27112615
Not Available
2
Carburettor LH PHBH 28
GU27112616
Not Available
3
RH intake manifold
GU31115000
Not Available
4
LH intake manifold
GU31115001
Not Available
5
Gasket
GU19115520
£2,08 Unit Price incl. VAT
6
Vis
GU98310610
£1,61 Unit Price incl. VAT
7
Rondelle
GU95100116
£1,60 Unit Price incl. VAT
8
screw
GU98812325
Not Available
9
Rondelle spéciale
GU61013800
£1,26 Unit Price incl. VAT
10
Hose
GU19114320
£12,14 Unit Price incl. VAT
11
Hose clamp
GU93305045
Not Available
12
Gasket ring
GU19114680
Not Available
13
Manifold
GU19114480
Not Available
14
Splitter
GU30607910
£20,21 Unit Price incl. VAT
15
CABLE DE STARTER
GU27132815
£15,38 Unit Price incl. VAT
16
CABLE DE STARTER
GU27133515
£14,09 Unit Price incl. VAT
17
Hose clamp
GU19718000
Not Available
18
Rondelle
GU95000205
£0,96 Unit Price incl. VAT
19
VIS
GU98054220
£1,18 Unit Price incl. VAT
20
Collier 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT

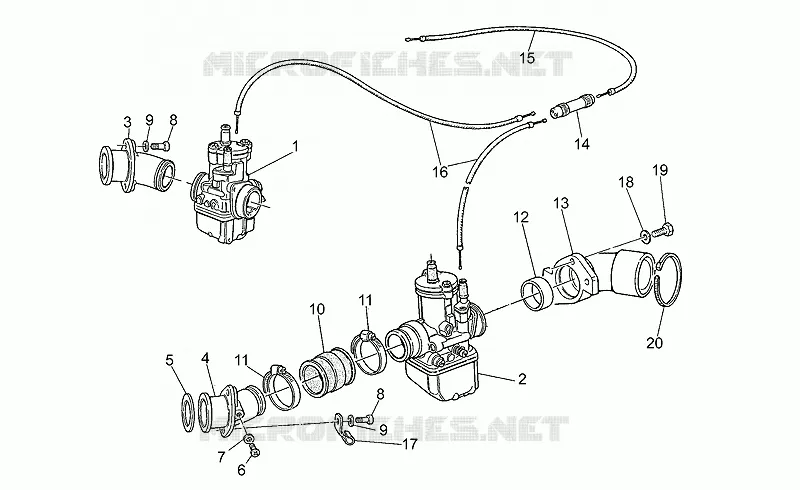

Find the detailed Fuel supply MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
