Engine displacement
350
2
Model
NTX
3
Year
1987
4
Trim
NTX
5
Parts Catalog
Cylinder head
6
Parts Diagram
Parts Catalog
Crankcase
by
Timing system
Cylinder head
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
RH cylinder head
GU23022170
Not Available
2
LH cylinder head
GU23022270
Not Available
3
Valve guide
GU61036801
£44,20 Unit Price incl. VAT
4
Anneau élastique
GU90353009
£1,02 Unit Price incl. VAT
5
Vis sans tête
GU96506042
£10,42 Unit Price incl. VAT
6
Plaquette antivibratile
GU19025300
£3,41 Unit Price incl. VAT
7
Nut
GU23021910
Not Available
8
Joint spi
GU19037820
£24,59 Unit Price incl. VAT
9
Valves cover
GU31023531
Not Available
10
Gasket
GU19023700
£1,57 Unit Price incl. VAT
11
Column nut
GU92660010
Not Available
12
Nut
GU31021900
Not Available
13
Rondelle 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
14
Long tie rod
GU96510177
Not Available
15
Short tie rod
GU96510120
Not Available
16
Vis M6X25
GU98622325
£1,02 Unit Price incl. VAT
17
Cylinder with piston
GU31060100
Not Available
18
Bushing
GU19021320
Not Available
19
Gasket
GU27022080
Not Available
20
Tie rod
GU96500102
£9,28 Unit Price incl. VAT
21
Rondelle élastique
GU61270300
£1,70 Unit Price incl. VAT
22
Bouchon
GU93180245
£2,63 Unit Price incl. VAT
23
Joint torique
GU61027200
£1,58 Unit Price incl. VAT
24
Gasket
GU27020820
Not Available
25
Joint torique
GU90706076
£0,89 Unit Price incl. VAT

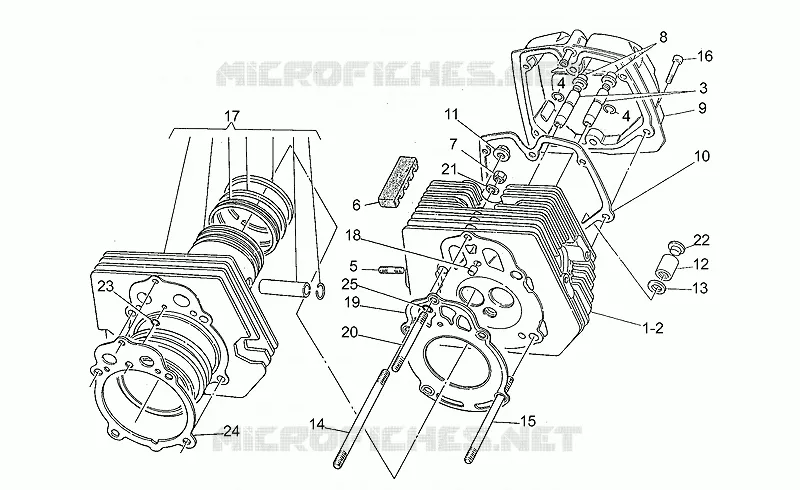

Find the detailed Cylinder head MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
