Crankshaft cpl. for Norge Polizia Berlino from 2008

Free shipping for all orders to United Kingdom over £150! See conditions.

Crankshaft cpl.

1

Cylinder with piston

976195

Not Available

2

Piston assy

976085

£443,65 Unit Price incl. VAT

3

Pistonring set

GU05060630

£98,47 Unit Price incl. VAT

4

Piston ring

GU05060730

£44,22 Unit Price incl. VAT

5

Piston ring

GU05060930

£57,47 Unit Price incl. VAT

6

Piston ring

GU05061030

Not Available

7

Piston pin

GU30061241

£114,19 Unit Price incl. VAT

8

Stop ring

GU90351038

Not Available

9

Gasket

976064

£70,37 Unit Price incl. VAT

10

screw

GU37067705

£0,42 Unit Price incl. VAT

11

Washer 6,4x10x0,7

GU14217901

Not Available

12

Stud bolt

976031

£21,44 Unit Price incl. VAT

13

Connecting rod cpl.

976006

£731,65 Unit Price incl. VAT

14

Connecting rod screw

849131

£32,42 Unit Price incl. VAT

15

Bearing half-shell 1,539-1,544

976171

£37,64 Unit Price incl. VAT

15

Bearing half-shell 1,535-1,540

976172

£41,33 Unit Price incl. VAT

16

Crankshaft cpl.

976119

£432,64 Unit Price incl. VAT

17

Cover

976020

£15,08 Unit Price incl. VAT

18

Flywheel cpl.

GU04067000

£886,46 Unit Price incl. VAT

19

Screw w/ flange M8x25

976481

£2,47 Unit Price incl. VAT

20

Conical spring washer 8,2X15

976484

£2,47 Unit Price incl. VAT

21

Chain ring

GU01067930

£632,70 Unit Price incl. VAT

22

Rubber spacer

GU05025330

£3,91 Unit Price incl. VAT

23

Pin 11,8X10

825597

£2,35 Unit Price incl. VAT

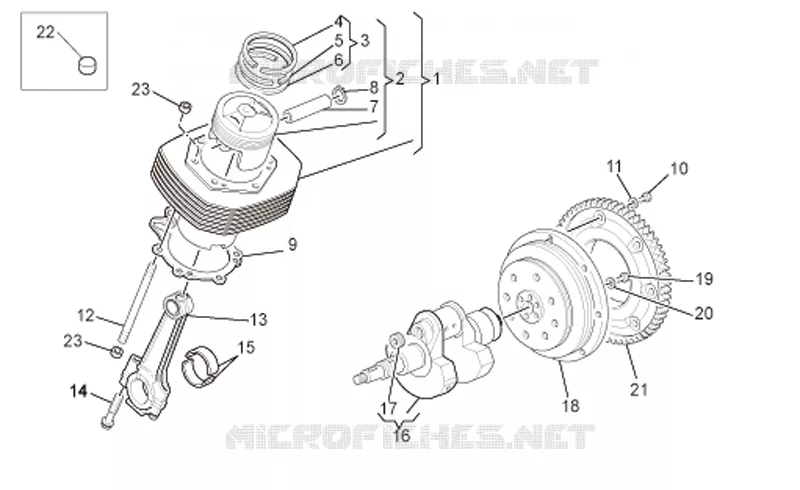

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
