1
Engine displacement
1200
2
Model
NORGE
3
Year
2016
4
Trim
Norge IE 8V
5
Parts Catalog
Steering
6
Parts Diagram
Parts Catalog
Plate set-decal-op.handbooks
by
Central body
Steering
1
2
3
4
5
6
7
7
8
9
10
11
11
12
12
13
14
15
16
17
18
19
20
1
Upper plate
897671
£386,05 Unit Price incl. VAT
2
Base avec tube
GU05494030
£358,14 Unit Price incl. VAT
3
Contre-bague
AP8123643
£27,53 Unit Price incl. VAT
4
Plaq.sécu.direction
AP8121207
£28,55 Unit Price incl. VAT
5
Bague
AP8123642
£25,34 Unit Price incl. VAT
6
Anneau pare-pouss.
AP8123644
£6,36 Unit Price incl. VAT
7
Anneau pare-pouss.
AP8123641
£13,74 Unit Price incl. VAT
8
Axial ball bearing
AP8110077
Not Available
9
Douille fx. pl. sup.
AP8121205
£38,83 Unit Price incl. VAT
10
Rondelle bouchon fourreau
AP8152384
£2,20 Unit Price incl. VAT
11
Vis M8x30
GU98682430
£0,70 Unit Price incl. VAT
12
Hex socket screw M8x25
GU98682425
£0,25 Unit Price incl. VAT
13
Pla.fix.tube frein
GU05658431
£16,96 Unit Price incl. VAT
14
Vis bride
AP8152298
£3,48 Unit Price incl. VAT
15
Bague 5,3x8x7,1
AP8221036
£0,73 Unit Price incl. VAT
16
Bouchon
898401
£29,84 Unit Price incl. VAT
17
SILENCIEUX
853215
£20,02 Unit Price incl. VAT
18
Plaque
898245
£9,29 Unit Price incl. VAT
19
Vis M6x18
GU98692318
£1,02 Unit Price incl. VAT
20
JOINT
180379
£1,20 Unit Price incl. VAT

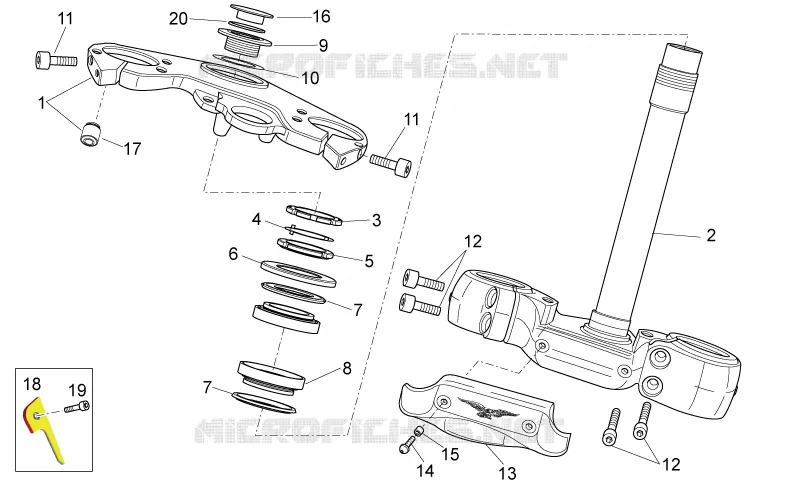

Find the detailed Steering MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
