1
Engine displacement
1200
2
Model
NORGE
3
Year
2016
4
Trim
Norge IE 8V
5
Parts Catalog

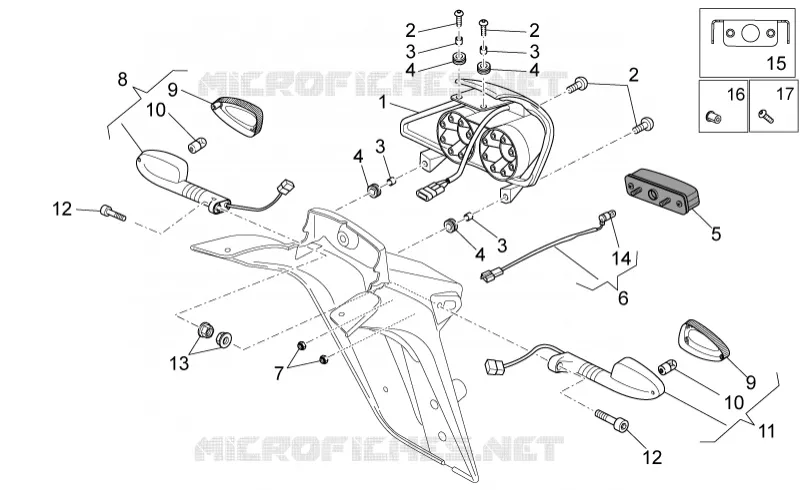

Taillight
6
Parts Diagram
Parts Catalog
Gear box selector
by
Lubrication
Taillight
1
2
2
2
3
3
3
3
4
4
4
4
5
6
7
8
9
10
10
11
12
12
13
14
15
16
17
1
Taillight
883314
£251,88 Unit Price incl. VAT
2
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
3
Bushing 5,3x8x7,1
AP8221036
£0,73 Unit Price incl. VAT
4
Rubber spacer
AP8120405
£5,52 Unit Price incl. VAT
5
Number-plate light
AP8212702
Not Available
6
Plate light wiring
AP8124976
£31,96 Unit Price incl. VAT
7
Self-locking nut M5
AP8152306
Not Available
8
Rear RH turn indicator
GU05751630
£34,56 Unit Price incl. VAT
9
Turn indicator lens
AP8127552
£13,78 Unit Price incl. VAT
10
Lamp 12V-10W
584332
£3,77 Unit Price incl. VAT
11
Rear LH turn indicator
GU05751730
Not Available
12
Hex socket screw
GU98692318
£1,02 Unit Price incl. VAT
13
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
14
Lamp 12V-5W
292022
Not Available
15
Headlight spacer
883997
£30,13 Unit Price incl. VAT
16
Rubber w/ insert
AP8120531
£6,84 Unit Price incl. VAT
17
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
