Engine displacement
1200
2
Model
NORGE
3
Year
2016
4
Trim
Norge IE 8V
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Clutch control complete
by
Transmission cage
Oil pump
1
2
3
4
5
6
7
7
8
9
9
10
11
12
13
14
1
Pompe à huile complète
8746505
£463,43 Unit Price incl. VAT
2
Bouchon
GU31159050
£16,44 Unit Price incl. VAT
3
Rondelle
GU30158900
£8,10 Unit Price incl. VAT
4
Rondelle 18,25x24x1
GU18144350
£6,66 Unit Price incl. VAT
5
Ressort
829486
£1,72 Unit Price incl. VAT
6
VOLET HUILE
829661
£11,54 Unit Price incl. VAT
7
JOINT O RING
237553
£1,87 Unit Price incl. VAT
8
Joint
874482
£7,74 Unit Price incl. VAT
9
screw
414835
Not Available
10
ROULEAU
874801
£5,09 Unit Price incl. VAT
11
Engrenage
877101
£142,14 Unit Price incl. VAT
12
Rondelle
GU03013800
£1,98 Unit Price incl. VAT
13
Rondelle 6,4x13x1,5
GU95005306
£1,27 Unit Price incl. VAT
14
Ecrou
873906
£10,18 Unit Price incl. VAT

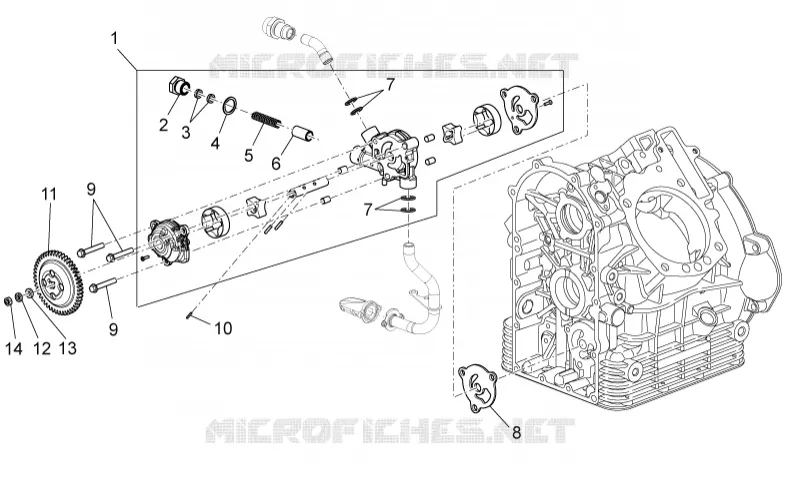

Find the detailed Oil pump MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
