Engine displacement
1200
2
Model
NORGE
3
Year
2016
4
Trim
Norge IE 8V
5
Parts Catalog
LH cylinder timing system II
6
Parts Diagram
Parts Catalog
Oil radiator
by
Internal fuel pump
LH cylinder timing system II
1
1
2
2
3
3
3
4
4
5
5
6
7
8
9
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
Tablette sphérique
878574
£12,38 Unit Price incl. VAT
2
Tappet
B016785
£75,73 Unit Price incl. VAT
3
Rockers axle support SX
B017026
Not Available
4
Goujon
872759
£16,14 Unit Price incl. VAT
5
BOULON
015792
Not Available
6
BOUCHON
842360
£2,20 Unit Price incl. VAT
7
Cam axle
B014576
Not Available
8
Goupille
976589
£0,66 Unit Price incl. VAT
9
Right exhaust left intake rocker
B0136034
£195,40 Unit Price incl. VAT
10
Ecrou
879916
£7,85 Unit Price incl. VAT
11
Vis de réglage
879707
£42,85 Unit Price incl. VAT
12
Left exhaust right intake rocker
B0136054
£181,60 Unit Price incl. VAT
13
Rondelle élastique 5,3X10X0,5
GU95129100
£0,58 Unit Price incl. VAT
14
Breather cover cpl.
B013479
Not Available
14
Séparateur centrifuge BLOW-BY
2A000080
£16,76 Unit Price incl. VAT
15
VIS
GU98622214
£0,98 Unit Price incl. VAT
16
Tôle
B013661
£19,73 Unit Price incl. VAT
17
Screw w/ flange M6x25
414837
Not Available
18
Ressort à diaphragme
879938
£6,83 Unit Price incl. VAT
19
Rondelle
879936
£4,26 Unit Price incl. VAT
20
Rondelle
879937
£6,53 Unit Price incl. VAT
21
Rouleau
B013552
£3,35 Unit Price incl. VAT
22
ECROU
833520
£0,76 Unit Price incl. VAT
23
VIS
487444
£22,22 Unit Price incl. VAT
24
Rondelle plate
976674
£5,14 Unit Price incl. VAT
25
Couronne
976350
£269,21 Unit Price incl. VAT
26
sheet oil breather
874601
Not Available
26
Bouchon
2A000082
£23,90 Unit Price incl. VAT
27
Screw w/ flange
843060
Not Available
28
Bague d'étanchéité
880965
£7,78 Unit Price incl. VAT
29
Chaine
976341
£116,12 Unit Price incl. VAT
30
Galet guide-chaîne
976338
£15,74 Unit Price incl. VAT
31
Galet guide-chaîne
976337
£15,78 Unit Price incl. VAT
32
Vis
878868
£8,14 Unit Price incl. VAT
33
ENTRETOISE
244585
£1,87 Unit Price incl. VAT

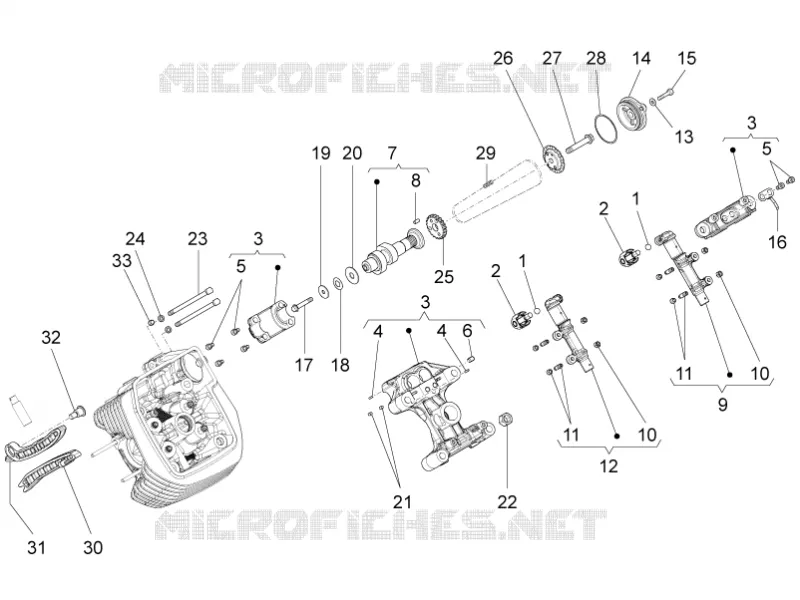

Find the detailed LH cylinder timing system II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
