1
Engine displacement
1200
2
Model
NORGE
3
Year
2016
4
Trim
Norge IE 8V
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Fuel supply
by
Police special equipment
Front wheel
1
2
3
3
4
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Front wheel, dark grey 3,5x17"
GU05610530
£843,65 Unit Price incl. VAT
1
Roue AV cpl
883883
£177,70 Unit Price incl. VAT
2
Entretoise roulements
GU05615230
£46,31 Unit Price incl. VAT
3
Roulement
AP8125777
£10,52 Unit Price incl. VAT
4
Bague d'étanchéité
AP8125773
£2,63 Unit Price incl. VAT
5
Bague seeger
AP8125779
£15,16 Unit Price incl. VAT
6
Front brake disc SX
896012
Not Available
6
Front brake disc SX
B044280
Not Available
7
Vis bride
AP8152286
£2,63 Unit Price incl. VAT
8
Axe de roue AV
GU05614130
£105,98 Unit Price incl. VAT
9
Entretoise roue avant
AP8125791
£17,93 Unit Price incl. VAT
10
Washer 25,2X36X1
GU95005325
£7,60 Unit Price incl. VAT
11
Nut
GU01612190
£10,82 Unit Price incl. VAT
12
Soupape tubeless
GU03617710
£27,68 Unit Price incl. VAT
13
Contrepoids
GU14616150
£18,94 Unit Price incl. VAT
14
Front tyre 120/70 ZR 17"
895033
Not Available
15
Front brake disc DX
896011
Not Available
15
RH front brake disc
B044279
Not Available
16
CABLE COMPTEUR
AP8128189
£104,45 Unit Price incl. VAT
17
Collier 2,4x92
GU49609601
£0,90 Unit Price incl. VAT
18
Détecteur
AP8127469
£146,02 Unit Price incl. VAT
19
VIS
598839
£1,27 Unit Price incl. VAT

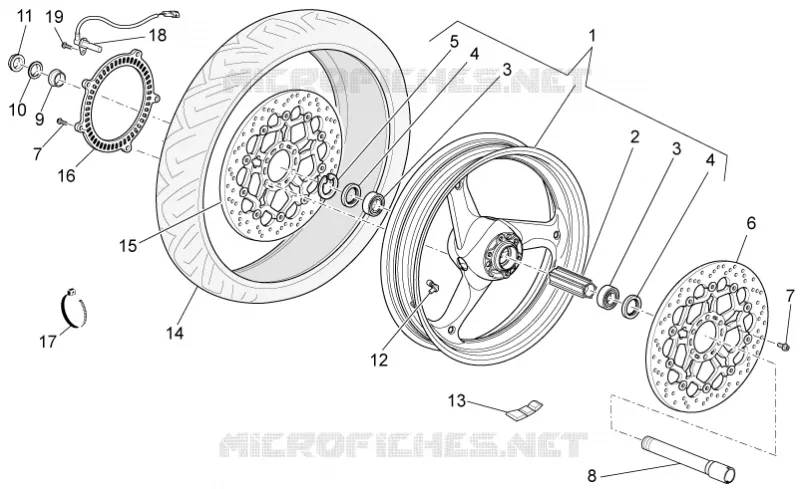

Find the detailed Front wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
