Engine displacement
1200
2
Model
NORGE
3
Year
2016
4
Trim
Norge IE 8V
5
Parts Catalog
Electro-Windscreen II
6
Parts Diagram
Parts Catalog
Front body II
by
Crank-case
Electro-Windscreen II
1
2
2
2
3
4
4
4
4
5
6
7
8
9
10
11
11
12
12
13
13
14
14
15
16
17
17
17
18
18
18
18
19
19
20
20
20
20
21
21
21
21
21
21
21
21
21
22
1
Windscreen
883810
Not Available
2
VIS
655467
£1,27 Unit Price incl. VAT
3
SUPPORT PARE BRISE GAU.
653027
£130,72 Unit Price incl. VAT
4
PASSE-CABLE
576565
£0,89 Unit Price incl. VAT
5
Couvercle
883811
£50,15 Unit Price incl. VAT
6
SUPPORT PARE BRISE DRO.
653028
£130,72 Unit Price incl. VAT
7
SUPPORT PARE BRISE DRO.
653157
£10,13 Unit Price incl. VAT
8
SUPPORT PARE BRISE GAU.
653156
£10,13 Unit Price incl. VAT
9
Vis
840542
£2,36 Unit Price incl. VAT
10
BOULON
274369
£0,62 Unit Price incl. VAT
11
Biellette
883790
£54,73 Unit Price incl. VAT
12
CIRCLIPS
271695
£1,16 Unit Price incl. VAT
13
Spacer
259658
Not Available
14
Rondelle nylon
AP8144565
£1,27 Unit Price incl. VAT
15
screw
GU98230412
Not Available
16
Vis M6X25
GU98370625
£5,23 Unit Price incl. VAT
17
ECROU
479175
£1,27 Unit Price incl. VAT
18
RONDELLE S00696600
006966
Not Available
19
VIS
620365
£1,30 Unit Price incl. VAT
20
ENTRETOISE
977644
£9,58 Unit Price incl. VAT
21
MOYEAU
977645
£2,45 Unit Price incl. VAT
22
Clip
AP8102381
£4,02 Unit Price incl. VAT

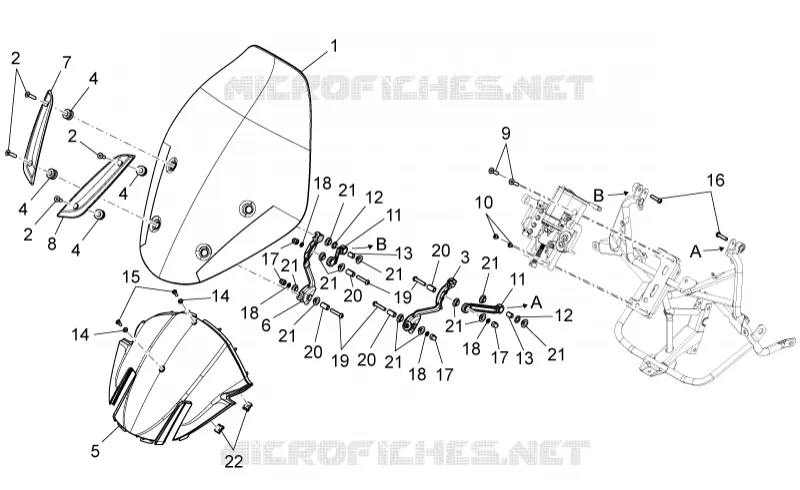

Find the detailed Electro-Windscreen II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
