Engine displacement
1200
2
Model
NORGE
3
Year
2016
4
Trim
Norge IE 8V
5
Parts Catalog
Drive shaft - Cylinder
6
Parts Diagram
Parts Catalog
Foot rests I
by
Throttle body
Drive shaft - Cylinder
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
10
10
11
12
13
13
14
15
16
17
17
18
18
19
20
21
22
23
24
25
26
1
Cylindre avec piston cpl.d.
981008
£1 196,29 Unit Price incl. VAT
2
PISTON
873667
£514,43 Unit Price incl. VAT
3
Ensemble de segments
981009
£199,69 Unit Price incl. VAT
4
SEGMENT DE PISTON
874287
£59,27 Unit Price incl. VAT
5
SEGMENT DE PISTON
874288
£42,07 Unit Price incl. VAT
6
SEGMENT DE PISTON
874289
£57,59 Unit Price incl. VAT
7
Vis
874286
£99,76 Unit Price incl. VAT
8
Vis
874567
£14,84 Unit Price incl. VAT
9
Joint
976312
£36,76 Unit Price incl. VAT
10
Stud bolt
976304
£13,28 Unit Price incl. VAT
11
Gicleur carter
825597
£2,35 Unit Price incl. VAT
12
Joint
874622
£80,96 Unit Price incl. VAT
12
Joint
874621
£72,59 Unit Price incl. VAT
12
Joint
976311
£83,30 Unit Price incl. VAT
13
Cylinder with piston assy., LH
981007
£1 420,44 Unit Price incl. VAT
14
Arbre moteur cpl.
B0133785001
£690,78 Unit Price incl. VAT
14
Arbre moteur cpl.
B0133785003
£473,02 Unit Price incl. VAT
14
Arbre moteur cpl.
B0133785002
£473,02 Unit Price incl. VAT
15
Rondelle
874293
£39,55 Unit Price incl. VAT
16
Rondelle
GU95100116
£1,60 Unit Price incl. VAT
17
Connecting rod cpl.
8783390002
Not Available
17
Connecting rod cpl.
8783390003
Not Available
17
Connecting rod cpl.
8783390001
Not Available
17
Connecting rod cpl. 0.588-0.598
2A0000920A
Not Available
17
Connecting rod cpl. 0.608-0.618
2A0000920C
Not Available
17
Connecting rod cpl. 0.598-0.608
2A0000920B
Not Available
18
Vis
849131
£32,42 Unit Price incl. VAT
19
Demi-coussinet
875244
£48,16 Unit Price incl. VAT
19
Demi-coussinet
875243
£48,16 Unit Price incl. VAT
20
RH chain tensioner
873689
£109,21 Unit Price incl. VAT
21
LH chain tensioner
873690
£109,21 Unit Price incl. VAT
22
Bouchon
976342
£12,07 Unit Price incl. VAT
23
Rondelle
849866
£7,78 Unit Price incl. VAT
24
Vis M6x20
GU98350310
£1,26 Unit Price incl. VAT
25
Bouchon
879404
£11,35 Unit Price incl. VAT
26
Rondelle
879405
£4,82 Unit Price incl. VAT

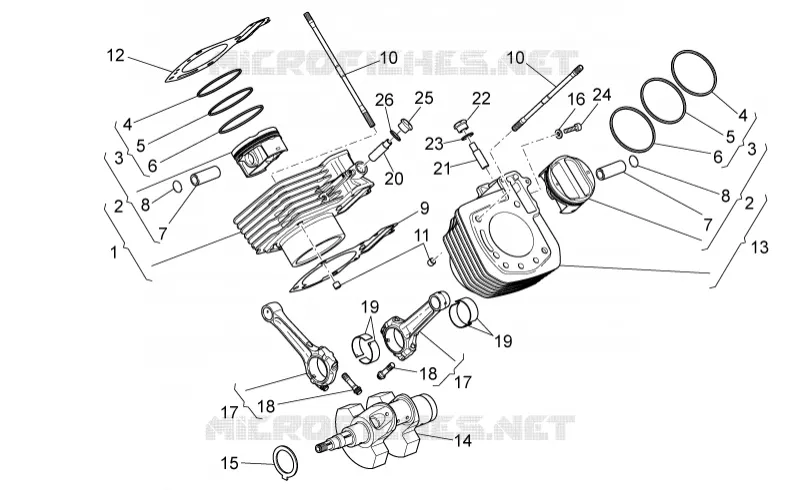

Find the detailed Drive shaft - Cylinder MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
