Engine displacement
1200
2
Model
NORGE
3
Year
2016
4
Trim
Norge IE 8V
5
Parts Catalog
Connecting rod - rear shock abs.
6
Parts Diagram
Parts Catalog
Foot rests II
by
Cylinder head and valves
Connecting rod - rear shock abs.
1
2
3
4
5
5
5
5
5
5
5
6
6
6
6
6
6
6
7
8
9
10
11
11
12
13
14
15
16
1
Amortisseur
883855
£903,73 Unit Price incl. VAT
2
Vis bride
AP8152398
£13,28 Unit Price incl. VAT
3
Double conrod
GU05560330
Not Available
4
Axe bielle double;
AP8135924
£23,82 Unit Price incl. VAT
5
Cage à rouleaux
AP8110066
£21,68 Unit Price incl. VAT
6
Joint spi
AP8110068
£16,14 Unit Price incl. VAT
7
Axe bielle double L47
GU05562030
£44,65 Unit Price incl. VAT
8
Double connecting rod pin L25
AP8135608
Not Available
9
Vis
AP8152397
£21,90 Unit Price incl. VAT
10
"Douille en ""T"""
AP8121155
£3,85 Unit Price incl. VAT
11
Ecrou autobloqu.
AP8152301
£1,94 Unit Price incl. VAT
12
Vis
AP8152147
£12,65 Unit Price incl. VAT
13
Rondelle élastique courbe
AP8150292
£1,88 Unit Price incl. VAT
14
Bielle simple complète
GU05562430
£298,92 Unit Price incl. VAT
15
Vis bride M10x85
AP8152482
£6,38 Unit Price incl. VAT
16
Vis
AP8152396
£18,83 Unit Price incl. VAT

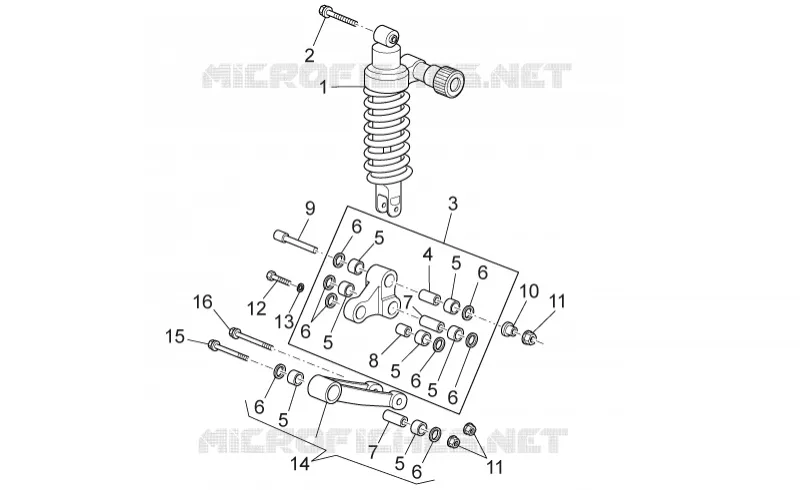

Find the detailed Connecting rod - rear shock abs. MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
