1
Engine displacement
1200
2
Model
NORGE
3
Year
2007
4
Trim
Norge IE
5
Parts Catalog
Police Body
6
Parts Diagram
Parts Catalog
Electro-Windscreen I
by
Swing arm

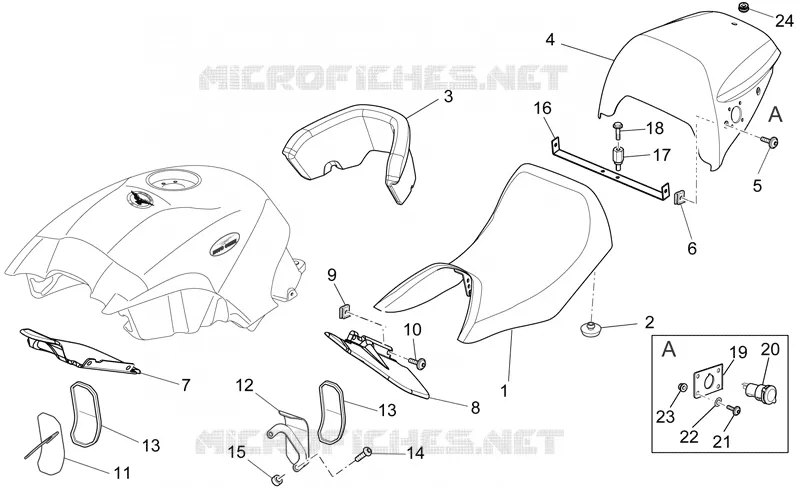

Police Body
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
1
Saddle, black (one p)
883323
£617,90 Unit Price incl. VAT
2
Rubber spacer
GU32461810
£5,93 Unit Price incl. VAT
3
Tank cover
978074
£144,23 Unit Price incl. VAT
4
Rear fairing, cyan
88331800YA1
£323,04 Unit Price incl. VAT
5
Screw w/ flange M5x12
AP8152302
Not Available
6
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
7
RH heat protection
883357
£138,44 Unit Price incl. VAT
8
LH heat protection
883358
£138,44 Unit Price incl. VAT
9
Hex socket screw M4x12
GU98370412
£1,26 Unit Price incl. VAT
10
Clip M4
AP8102381
£4,02 Unit Price incl. VAT
11
RH protection
977044
£25,91 Unit Price incl. VAT
12
LH protection
977045
£25,91 Unit Price incl. VAT
13
Rubber spacer
GU18941750
£11,78 Unit Price incl. VAT
14
screw M6x50
GU05025932
£7,98 Unit Price incl. VAT
15
Spacer 7x10x22
GU91180720
£9,94 Unit Price incl. VAT
16
Bracket
977993
£66,43 Unit Price incl. VAT
17
Stud bolt
978619
£17,52 Unit Price incl. VAT
18
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
19
Support plate
978208
£19,56 Unit Price incl. VAT
20
Socket
AP8124768
Not Available
21
Hex socket screw
GU98230518
£1,27 Unit Price incl. VAT
22
Washer 5,5x15x1,6
AP8150248
£0,98 Unit Price incl. VAT
23
Nut
GU92630205
£0,88 Unit Price incl. VAT
24
Cover 15 mm
GU93180111
£2,63 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
