Transmission complete I for Nevada S Anniversario from 2012

Free shipping for all orders to United Kingdom over £150! See conditions.

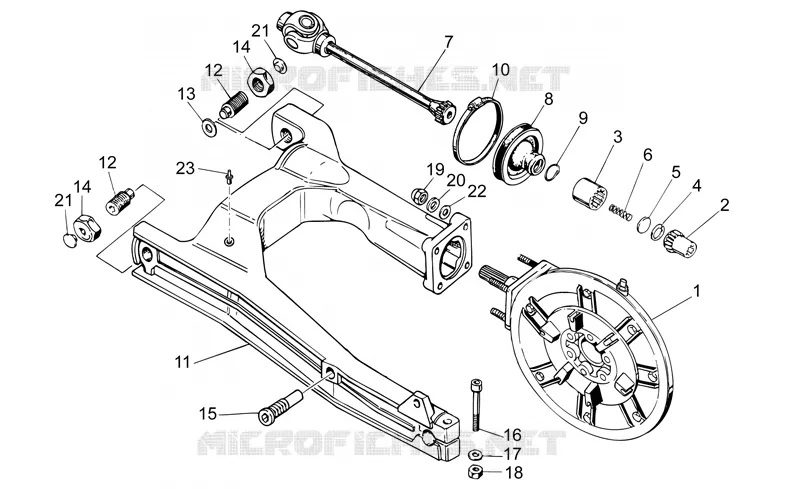

Transmission complete I

1

Transmission box assy., black

976941

Not Available

2

Hose

GU31327783

£121,97 Unit Price incl. VAT

3

Hose

GU19328801

£92,20 Unit Price incl. VAT

4

Circlip

GU90272023

£0,89 Unit Price incl. VAT

5

Disc

GU19327601

£3,61 Unit Price incl. VAT

6

Spring

GU94321099

£7,19 Unit Price incl. VAT

7

Coupling

GU23328081

£944,99 Unit Price incl. VAT

8

Protection collar

GU23548080

£30,34 Unit Price incl. VAT

9

Spring

GU23548180

£14,64 Unit Price incl. VAT

10

Hose clamp D=60-80

AP8120246

£4,27 Unit Price incl. VAT

11

Swing arm, black

883011

Not Available

12

Pin

GU19547000

£65,38 Unit Price incl. VAT

13

Spacer

GU35214300

£4,54 Unit Price incl. VAT

14

Nut

GU31547882

£18,50 Unit Price incl. VAT

15

Pin

GU31544181

£88,58 Unit Price incl. VAT

16

screw M10x45

GU98680545

£5,23 Unit Price incl. VAT

17

Washer 10,2X18X2

GU95008210

£0,85 Unit Price incl. VAT

18

Nut M10x1,5

GU92606210

£1,67 Unit Price incl. VAT

19

Cap nut M8x1,25

860651

£5,14 Unit Price incl. VAT

20

Washer 8,4X13X0,8

GU14615901

£2,48 Unit Price incl. VAT

21

Cover

GU93180105

£1,78 Unit Price incl. VAT

22

Washer 8,4x14,57x1,6

GU95005308

£1,26 Unit Price incl. VAT

23

Cover 5x9

GU03922280

£1,91 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
