Frame I for MOTO GUZZI LAVERDA SCARABEO Nevada Classic IE from 2007

Free shipping for all orders to United Kingdom over £150! See conditions.

Frame I

1

Chassis complete noire

GU32400160

£334,57 Unit Price incl. VAT

2

Hex socket screw M10x30

GU98682530

Not Available

3

Ecrou M10x1,5

GU92630510

£1,58 Unit Price incl. VAT

4

Plate

GU32418260

Not Available

5

Hex socket screw M8x16

GU98350416

£0,38 Unit Price incl. VAT

6

Rondelle 8,4X15X1,8

GU95008208

£1,27 Unit Price incl. VAT

7

Pivot M10x205

GU98110199

£37,12 Unit Price incl. VAT

8

Rondelle 10,2X18X2

GU95008210

£0,85 Unit Price incl. VAT

9

Nut M10x1,5

GU92606210

£1,67 Unit Price incl. VAT

10

Vis M10x55

GU98680555

£5,23 Unit Price incl. VAT

11

Protection

GU32457810

£5,81 Unit Price incl. VAT

12

Clip

AP8102375

£2,20 Unit Price incl. VAT

13

Caoutchouc anti-vibrations

GU01103860

£8,16 Unit Price incl. VAT

14

Caoutchouc

AP8201124

£7,40 Unit Price incl. VAT

15

Vis M8X14

GU98682414

£2,27 Unit Price incl. VAT

16

Porte-documents

GU32479560

£17,20 Unit Price incl. VAT

17

"Douille en ""T"""

AP8120508

£3,83 Unit Price incl. VAT

18

Protection

GU32575960

£26,34 Unit Price incl. VAT

19

Screw w/ flange M5x12

AP8152302

Not Available

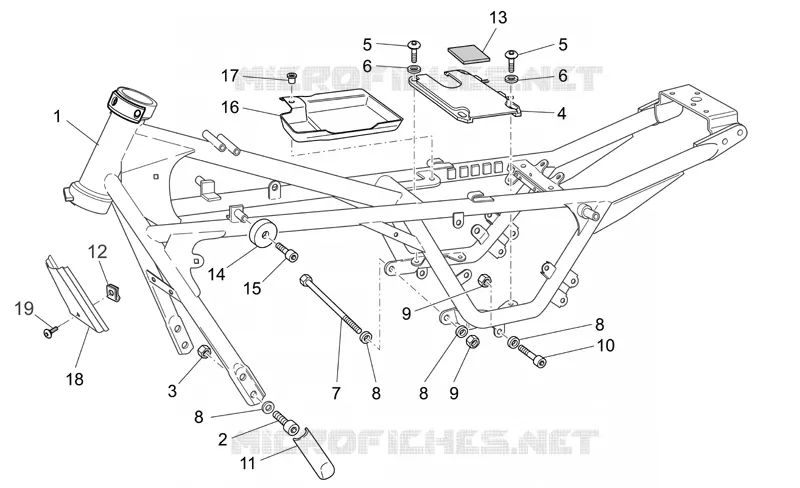

Find the detailed Frame I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
