Engine displacement
750
2
Model
NEVADA
3
Year
2004
4
Trim
Nevada Classic IE
5
Parts Catalog
Frame II
6
Parts Diagram
Parts Catalog
Frame I
by
Lateral stand
Frame II
1
2
3
4
5
5
6
6
7
8
8
9
10
11
11
12
13
14
15
1
RH arm polished black
GU32420360
Not Available
2
LH arm polished black
977097
£386,92 Unit Price incl. VAT
2
Bras g.noir brillant
GU32422160
£384,59 Unit Price incl. VAT
3
Pivot M10x250
GU53429500
£35,46 Unit Price incl. VAT
4
Bague
GU19017000
£10,75 Unit Price incl. VAT
5
Nut M10x1,5
GU92606210
£1,67 Unit Price incl. VAT
6
Rondelle 10,2X18X2
GU95008210
£0,85 Unit Price incl. VAT
7
Vis M10x65
GU98082565
£5,23 Unit Price incl. VAT
8
Bush 18 mm est.
GU28252060
£9,11 Unit Price incl. VAT
9
Traverse comm.bras duberceau
GU32431310
£58,60 Unit Price incl. VAT
10
Pivot support moteur;
AP8121367
£15,05 Unit Price incl. VAT
11
Rondelle
AP8152220
£3,24 Unit Price incl. VAT
12
Ecrou autofr. bas
AP8150436
£1,94 Unit Price incl. VAT
13
Vis bride
AP8152287
£2,63 Unit Price incl. VAT
14
Ecrou autobloqu.
AP8152300
£1,94 Unit Price incl. VAT
15
Vis bride
AP8152288
£2,20 Unit Price incl. VAT

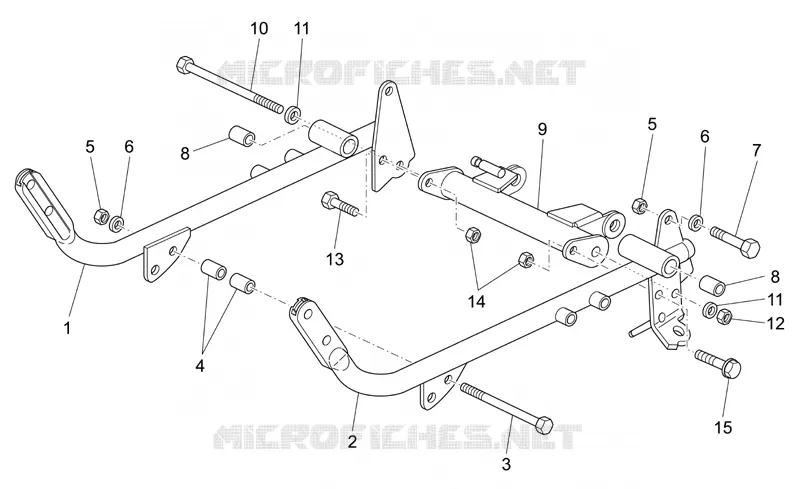

Find the detailed Frame II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
