Engine displacement
750
2
Model
NEVADA
3
Year
2005
4
Trim
Nevada Classic IE
5
Parts Catalog
Rear master cylinder
6

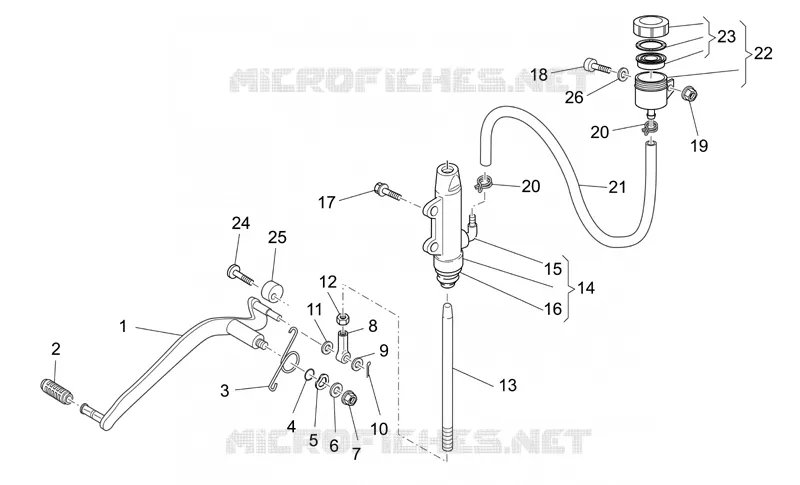

Parts Diagram
Parts Catalog
Front brake system
by
Rear brake caliper
Rear master cylinder
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
1
Rear brake lever
GU32677060
Not Available
2
Rubber spacer
GU14251001
£3,65 Unit Price incl. VAT
3
Spring
GU32667660
£17,29 Unit Price incl. VAT
4
O-ring
GU90706141
Not Available
5
Spring washer
GU95129260
£2,59 Unit Price incl. VAT
6
Washer 10,5x22x2,5
GU95008310
£2,48 Unit Price incl. VAT
7
Low self-locking nut
AP8150436
£1,94 Unit Price incl. VAT
8
Block
GU18257551
£70,18 Unit Price incl. VAT
9
Washer
GU95005311
£0,68 Unit Price incl. VAT
10
Split pin
GU95500221
£1,31 Unit Price incl. VAT
11
Washer 8,4x15
GU03270300
£0,19 Unit Price incl. VAT
12
Nut
GU92609007
£1,10 Unit Price incl. VAT
13
Master cylinder rod
GU32675260
£42,41 Unit Price incl. VAT
14
Rear master cylinder
AP8133643
£221,90 Unit Price incl. VAT
15
Rear brake pump union
AP8213057
£28,61 Unit Price incl. VAT
16
Rubber bellows
AP8113288
£48,95 Unit Price incl. VAT
17
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
18
Hex socket screw
GU98682215
£2,35 Unit Price incl. VAT
19
Flanged nut
GU92650035
£2,35 Unit Price incl. VAT
20
Hose clamp D10,1*
AP8101594
Not Available
21
Oil pipe
GU00823950050
£26,57 Unit Price incl. VAT
22
Brake oil tank complete
AP8113241
Not Available
23
Tank cap
AP8113553
£23,46 Unit Price incl. VAT
24
Hex socket screw M8x20
GU98682420
£1,02 Unit Price incl. VAT
25
Cam
GU32677660
£52,74 Unit Price incl. VAT
26
Washer 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
