Rear master cylinder for MOTO GUZZI LAVERDA SCARABEO Nevada from 1991

Free shipping for all orders to United Kingdom over £150! See conditions.

Rear master cylinder

1

Rear brake lever

GU31677060

Not Available

2

Caoutchouc

GU14251001

£3,65 Unit Price incl. VAT

3

Rondelle élastique

GU95129260

£2,59 Unit Price incl. VAT

4

Flat washer

GU95004215

£1,24 Unit Price incl. VAT

5

GOUPILLE

GU95500227

£1,56 Unit Price incl. VAT

6

Master cylinder rod

GU31675260

Not Available

6

TIGE

GU31675280

£112,64 Unit Price incl. VAT

7

PIVOT

GU18257551

£70,18 Unit Price incl. VAT

8

Nut

GU92690073

Not Available

9

Fork

GU31626860

Not Available

10

Pin

GU95770265

Not Available

11

Washer

GU95129110

Not Available

12

Goupille

GU95500222

£1,26 Unit Price incl. VAT

13

Rear master cylinder 12,7 mm

GU19660200

Not Available

14

Rear brake lever

GU19667500

£56,18 Unit Price incl. VAT

15

Rear brake lever spring

GU19667600

Not Available

16

Washer 6,15x11x0,8

GU95004206

Not Available

17

screw

GU98052330

Not Available

17

screw

GU98052326

£2,23 Unit Price incl. VAT

18

Rondelle

GU95000206

£1,02 Unit Price incl. VAT

19

Notched washer

GU95021106

Not Available

20

Ecrou

GU92602206

£1,68 Unit Price incl. VAT

21

Brake oil tank

GU65663500

£43,92 Unit Price incl. VAT

22

Circlip

GU90271008

£0,89 Unit Price incl. VAT

23

Bouchon réservoir

GU17661052

£30,54 Unit Price incl. VAT

24

pipe

GU00823944055

Not Available

25

Hose clamp

GU19157800

Not Available

26

Hex screw

GU98054316

£0,49 Unit Price incl. VAT

27

O-ring

GU90706141

Not Available

28

Gr.révision raccordde pomp

GU19659500

£22,94 Unit Price incl. VAT

29

Lever overhaul kit

GU19659600

Not Available

30

Rear pump rev. kit

GU17659352

£104,56 Unit Price incl. VAT

31

Entretoise

GU91180605

£10,21 Unit Price incl. VAT

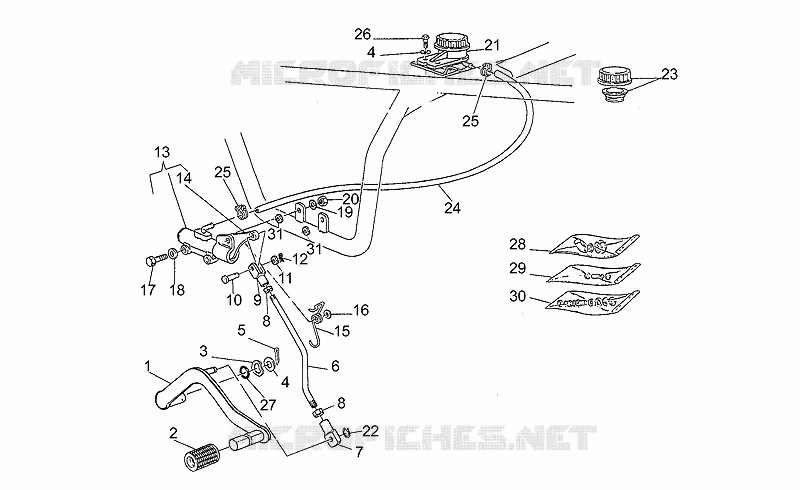

Find the detailed Rear master cylinder MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
