Stands for MOTO GUZZI LAVERDA SCARABEO Nevada from 1997

Free shipping for all orders to United Kingdom over £150! See conditions.

Stands

1

RH craddle arm

GU31420381

Not Available

2

LH craddle arm

GU31422181

Not Available

3

Central stand

GU23430370

£318,91 Unit Price incl. VAT

4

Rubber pedal

GU13432640

£9,67 Unit Price incl. VAT

5

Lateral stand spring

GU12434001

Not Available

6

screw

GU98054530

£1,91 Unit Price incl. VAT

7

Spacer

GU91181114

£22,98 Unit Price incl. VAT

8

Spring

GU94322215

£10,33 Unit Price incl. VAT

9

Washer

GU95000210

Not Available

10

Nut M10x1,5

GU92630510

£1,58 Unit Price incl. VAT

11

Sidestand, chrome

GU31432160

Not Available

12

Rubber spacer

GU14423800

£12,46 Unit Price incl. VAT

13

Pin

GU99105129

Not Available

14

Spring

GU17434060

£9,18 Unit Price incl. VAT

15

Split pin

GU95401215

£1,33 Unit Price incl. VAT

16

Nut

GU92602210

Not Available

17

Hex screw

GU98054322

£0,40 Unit Price incl. VAT

18

RH front foot rest pipe

GU23440710

Not Available

19

LH front foot rest pipe

GU23441810

£84,12 Unit Price incl. VAT

20

Spring

GU23441110

£2,48 Unit Price incl. VAT

21

Plate

GU23441210

£17,46 Unit Price incl. VAT

23

screw

GU98054314

£0,49 Unit Price incl. VAT

24

Rubber pedal

GU23443210

£17,44 Unit Price incl. VAT

25

Washer

GU95000208

£5,23 Unit Price incl. VAT

26

Spring washer 8x15x0,3

GU61270300

£1,70 Unit Price incl. VAT

27

screw

GU98052565

£4,44 Unit Price incl. VAT

28

Washer 10,2x18x2

GU95004210

£0,96 Unit Price incl. VAT

29

Nut

GU92602206

£1,68 Unit Price incl. VAT

30

Pin

GU23442210

£36,29 Unit Price incl. VAT

31

Bushing

GU19017000

£10,75 Unit Price incl. VAT

32

Pin M10x250

GU53429500

£35,46 Unit Price incl. VAT

33

Nut M8x1

GU92602508

Not Available

34

Spacer

GU91180602

£10,21 Unit Price incl. VAT

35

Spring washer

GU95129130

£10,73 Unit Price incl. VAT

36

Bush 18 mm est.

GU28252060

£9,11 Unit Price incl. VAT

37

Plate

GU28432760

Not Available

38

Plate

GU31759360

Not Available

39

screw

GU98612110

£0,56 Unit Price incl. VAT

40

screw

GU98052535

£1,94 Unit Price incl. VAT

41

Lateral stand switch

GU29759150

£88,81 Unit Price incl. VAT

42

Special washer

GU61013800

£1,26 Unit Price incl. VAT

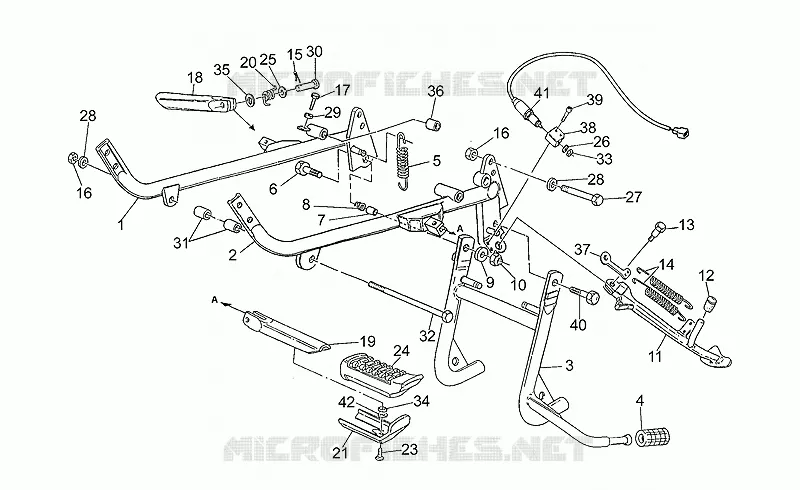

Find the detailed Stands MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
