1
Engine displacement
350
2
Model
NEVADA
3
Year
1994
4
Trim
Nevada
5
Parts Catalog
Exhaust unit
6
Parts Diagram
Parts Catalog
Fuel supply
by
Gear lever
Exhaust unit
1
1
2
2
3
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
1
RH exhaust pipe
GU31120782
Not Available
1
RH exhaust pipe
GU31120780
Not Available
2
LH exhaust pipe
GU31120783
Not Available
2
LH exhaust pipe
GU31120781
Not Available
3
pipe
GU31123980
Not Available
3
pipe
GU31123981
Not Available
4
Hose clamp
GU31126960
£18,52 Unit Price incl. VAT
5
Gasket
GU19025280
£3,54 Unit Price incl. VAT
6
Spacer
GU19025460
£14,50 Unit Price incl. VAT
7
Exhaust ring nut
GU19121050
Not Available
8
Special washer
GU61013800
£1,26 Unit Price incl. VAT
9
Nut
GU92701062
Not Available
10
RH silencer
GU31122960
£461,48 Unit Price incl. VAT
11
LH silencer
GU31123060
Not Available
12
Hose clamp
GU31123460
£92,22 Unit Price incl. VAT
13
RH plate
GU31128660
Not Available
14
LH plate
GU31128760
£27,35 Unit Price incl. VAT
15
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
16
Nut
GU92781081
£10,21 Unit Price incl. VAT
17
screw
GU98622420
Not Available
18
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
19
Nut
GU92660008
£0,92 Unit Price incl. VAT
20
screw
GU61127520
£0,77 Unit Price incl. VAT
21
Ring nut
GU61127220
£15,94 Unit Price incl. VAT
22
Plug
GU23943410
£3,06 Unit Price incl. VAT

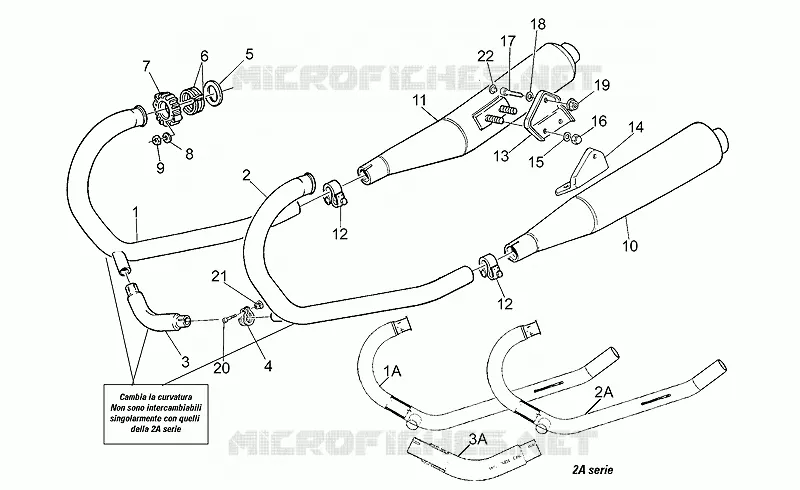

Find the detailed Exhaust unit MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
