Engine displacement
1380
2
Model
MGX-21
3
Year
2016
4
Trim
MGX 21 FLYING FORTRESS
5
Parts Catalog
Clutch
6
Parts Diagram
Parts Catalog
Head cover
by
Frame
Clutch
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Clutch, assy.
2A000107
£1 234,78 Unit Price incl. VAT
2
Clutch disc
B064100
£133,58 Unit Price incl. VAT
3
Clutch command cylinder
85220R
£43,54 Unit Price incl. VAT
4
Gasket ring
B064271
£11,50 Unit Price incl. VAT
5
Hex socket screw M7x16
976535
£13,16 Unit Price incl. VAT
6
Hex socket screw M6x10
884044
£2,47 Unit Price incl. VAT
7
Screw w/ flange M8x25
976481
£2,47 Unit Price incl. VAT
8
Spring cap
2A000072
£34,98 Unit Price incl. VAT
9
Clutch drive tapped
B013036
£33,97 Unit Price incl. VAT
10
Bushing
976564
£10,44 Unit Price incl. VAT
11
Bush
GU14085900
£2,48 Unit Price incl. VAT
12
Rod L=mm184,5
976594
£97,25 Unit Price incl. VAT
12
Rod L= 185.5mm
B063012
£15,61 Unit Price incl. VAT
12
Rod L=mm183
976593
£97,25 Unit Price incl. VAT
12
Rod L=mm186
976595
£97,25 Unit Price incl. VAT
12
Rod L=1,185mm
B0630111
£54,96 Unit Price incl. VAT
12
Rod L=mm187,5
976596
£97,25 Unit Price incl. VAT
13
Clutch gear
B013037
£24,71 Unit Price incl. VAT
14
Engine bearing set
976696
£79,07 Unit Price incl. VAT
15
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT

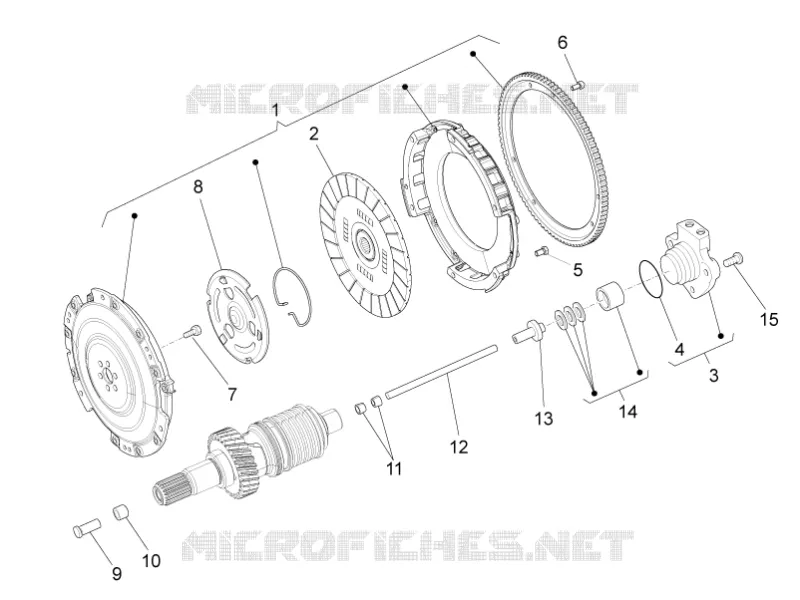

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
