1
Front wheel complete
GU14610350
Not Available
2
Nut M16X1,5
GU92602516
Not Available
3
Rondelle 17X27X2
GU95004217
£3,86 Unit Price incl. VAT
4
Spacer
GU14616350
Not Available
5
Nut
GU92630508
£1,67 Unit Price incl. VAT
6
screw
GU98052460
Not Available
7
Brake disc
GU14613350
Not Available
8
Roulement
GU92204221
£65,62 Unit Price incl. VAT
9
Spacer
GU14615250
Not Available
10
Front wheel spindle
GU28614150
Not Available
12
Front wheel complete
GU14610350
Not Available
13
Rear wheel
GU14630650
Not Available
14
Hub
GU14632250
£200,10 Unit Price incl. VAT
15
Nut M6x1,5
GU92602316
£1,45 Unit Price incl. VAT
16
Washer
GU14634400
Not Available
17
Spacer
GU17634150
Not Available
18
Pin
GU17633360
Not Available
19
screw
GU98052450
Not Available
20
Rear brake disc
GU14635750
Not Available
21
Vis M6X20
GU98054320
£0,96 Unit Price incl. VAT
22
Notched washer
GU95021106
Not Available
23
Bride
GU14335650
£64,54 Unit Price incl. VAT
24
Ring
GU14335350
Not Available
25
Flexible coupling disc
GU14335203
Not Available
26
Primary drive / Cush drive
GU01336800
£14,40 Unit Price incl. VAT
27
O-ring
GU90706490
£1,61 Unit Price incl. VAT
28
Bague seeger
GU90271055
£7,60 Unit Price incl. VAT
29
Bearing internal spacer
GU14634050
£27,19 Unit Price incl. VAT
30
Roulement à billes 20X47X14
GU92204220
£10,28 Unit Price incl. VAT
31
Rear wheel
GU14630650
Not Available
32
Contrepoids
GU14616150
£18,94 Unit Price incl. VAT
33
Bouchon
GU62616800
£10,14 Unit Price incl. VAT

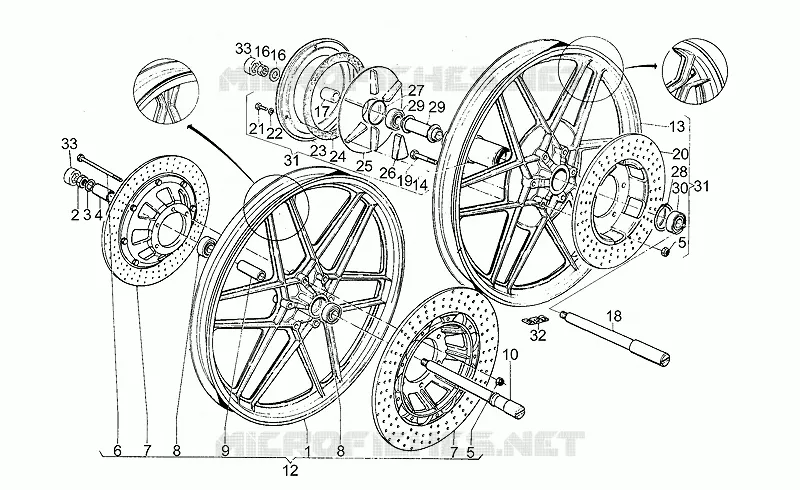

Find the detailed Wheels MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
