Engine displacement
850
2
Model
LE-MANS
3
Year
1984
4
Trim
Le Mans III
5
Parts Catalog
Battery
6
Parts Diagram
Parts Catalog
by
Fairing-windscreen
Battery
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
49
48
47
47
46
45
44
43
42
41
40
40
39
38
37
36
35
34
33
33
32
32
31
30
29
29
28
27
26
25
24
23
22
21
21
20
20
19
18
17
16
16
15
14
13
12
11
10
10
9
8
8
7
7
6
5
4
3
3
3
2
1
1
Bosch alternator
GU17712400
Not Available
2
Hex socket screw M5x45
GU98620245
£0,91 Unit Price incl. VAT
3
Notched washer
GU95021105
£1,26 Unit Price incl. VAT
4
Repairing kit
GU17719900
Not Available
5
Connector 3 vie
GU61712500
Not Available
6
HT cable
GU17718350
Not Available
7
Cap
GU14717600
£3,04 Unit Price incl. VAT
8
Sparkplug cap
GU14717400
Not Available
9
Spark plug NGK BP6ES
GU30717010
Not Available
10
Coil
GU14716503
Not Available
11
Wire
GU14747700
Not Available
12
screw
GU98052345
Not Available
13
Washer
GU95100125
£6,68 Unit Price incl. VAT
14
Spacer
GU91180718
£10,08 Unit Price incl. VAT
15
Washer
GU95000206
£1,02 Unit Price incl. VAT
16
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
17
Voltage regulator BOSCH
GU29703800
Not Available
18
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
19
screw
GU98054314
£0,49 Unit Price incl. VAT
20
Washer 6,4x12x1,2
GU95100141
£1,02 Unit Price incl. VAT
21
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT
22
Main switch
GU31735360
Not Available
23
screw
GU14712459
Not Available
24
Connector
GU61712600
£7,56 Unit Price incl. VAT
25
Cap
GU19707100
£12,65 Unit Price incl. VAT
26
Guard
GU19733350
Not Available
27
Locks
GU14736856
Not Available
28
Bosch rectifier
GU17704300
Not Available
29
Cover
GU14704205
Not Available
30
screw
GU98202516
Not Available
31
Washer 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
32
Washer
GU95000205
£0,96 Unit Price incl. VAT
33
Nut
GU92602205
£0,96 Unit Price incl. VAT
34
Wire
GU17748500
£2,78 Unit Price incl. VAT
35
Battery 12V-24Ah
GU28704552
Not Available
36
Battery holder
GU28707050
£27,20 Unit Price incl. VAT
37
Fixing snap
GU28704850
Not Available
38
Fixing snap
GU14705500
£21,23 Unit Price incl. VAT
39
Cover
GU93180220
£3,68 Unit Price incl. VAT
40
Wire
GU14748450
Not Available
41
Cap
GU25706700
Not Available
42
Starter relay
GU19732500
£27,72 Unit Price incl. VAT
43
screw
GU98054210
£0,43 Unit Price incl. VAT
44
Starter motor Valeo
GU30730711
£557,15 Unit Price incl. VAT
45
Switch assy
GU14730558
£514,20 Unit Price incl. VAT
46
Starter motor revision kit
GU14730570
Not Available
47
screw
GU98052480
Not Available
48
Choke support
GU28135650
Not Available
49
Washer
GU95004208
£0,70 Unit Price incl. VAT
50
Nut
GU92602208
Not Available
51
Transfer case with advance
GU14715400
Not Available
52
Gasket
GU14716400
Not Available
53
Gear
GU14716200
Not Available
54
Pin
GU95510318
Not Available
55
Plate
GU14715700
£12,92 Unit Price incl. VAT
56
Hex screw M8x30
GU98052430
£1,58 Unit Price incl. VAT
57
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
58
Spacer
GU91180907
Not Available
59
Cover
GU14715420
Not Available
60
Contact breaker rev.kit
GU14719800
Not Available
61
Toolkit
GU28929940
Not Available
62
Operator's handbook
GU28900051
Not Available
62
Operator's handbook
GU28900050
Not Available
62
Operator's handbook
GU28900052
Not Available
62
Operator's handbook
GU28900053
Not Available
63
Ring nut
GU19741336
Not Available

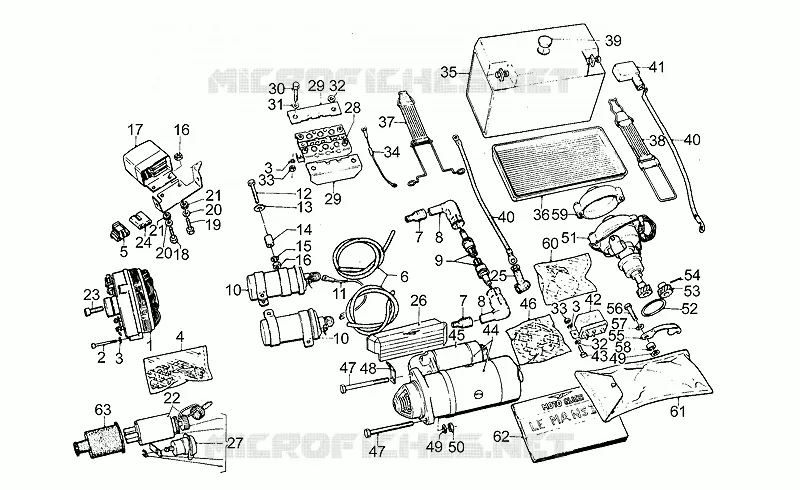

Find the detailed Battery MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
