Engine displacement
850
2
Model
LE-MANS
3
Year
1982
4
Trim
Le Mans III
5
Parts Catalog
Carburettor
6
Parts Diagram
Parts Catalog
Gearbox I
by
Crankcase
Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
19
20
21
22
23
24
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
1
Gas valve
GU14937550
Not Available
2
Needle valve 268 A-B
GU37935506
£19,46 Unit Price incl. VAT
3
Main jet 115
GU28935750
Not Available
4
Idle jet 50
GU66935910
Not Available
5
Starter jet 70
GU14936050
Not Available
6
Conical pin
GU28937750
Not Available
7
Pump jet 33
GU28939050
Not Available
8
Needle valve 300
GU14939150
Not Available
9
Float
GU14933000
Not Available
10
Plug
GU14933150
Not Available
11
Tyre
0000000
Not Available
12
Tyre
0000000
Not Available
13
Throttle lever
GU14933550
Not Available
14
screw
GU14933450
Not Available
15
Spring washer
GU14933650
Not Available
16
Washer
GU13932900
Not Available
17
screw
GU14933450
Not Available
18
VIS
GU14934650
£1,79 Unit Price incl. VAT
19
LH support
GU28934751
Not Available
19
RH support
GU28934750
Not Available
20
Spring washer
GU14934850
Not Available
21
screw
GU14934950
Not Available
22
RH carburettor rod
GU28935150
Not Available
23
Spring
GU14935350
Not Available
24
Cover
GU14935450
Not Available
25
Tyre
0000000
Not Available
26
RH mixture chamber cover
GU14935950
Not Available
27
LH mixture chamber cover
GU14936150
Not Available
28
LH mixture chamber cover
GU14936250
Not Available
29
LH carburettor rod
GU28935850
Not Available
30
Wire tensioner screw
GU53937200
Not Available
31
Ecrou
GU19938880
£2,63 Unit Price incl. VAT
32
pipe
GU14937950
Not Available
33
Starter device cover
GU17937450
Not Available
34
Tyre
0000000
Not Available
35
Ressort
GU13937600
£2,68 Unit Price incl. VAT
36
Starter valve
GU13937800
£12,94 Unit Price incl. VAT
37
Spring
GU14938050
Not Available
38
Lever
GU14938150
Not Available
39
screw
GU13937900
Not Available
40
Tyre
0000000
Not Available
41
Tyre
0000000
Not Available
42
Pump control lever pin
GU14938350
Not Available
43
Tie rod
GU14938450
Not Available
44
Spring
GU28938650
£3,42 Unit Price incl. VAT
45
Pin clip
GU14938550
Not Available
46
Tyre
0000000
Not Available
47
Jetholder
GU14932350
Not Available
48
Tyre
0000000
Not Available
49
Tyre
0000000
Not Available
50
Delivery valve
GU14937150
Not Available
51
Tyre
0000000
Not Available
52
Nut
GU14936450
Not Available
53
screw
GU14936550
Not Available
54
screw
GU14936650
Not Available
55
Tyre
0000000
Not Available
56
Pump cover
GU14936850
£114,90 Unit Price incl. VAT
57
Ressort
GU14936950
£16,73 Unit Price incl. VAT
58
Diaphragm
GU14931050
Not Available
59
Float chamber fix.plug
GU14931850
Not Available
60
Float pin
GU13933100
£17,57 Unit Price incl. VAT
61
Main jetholder
GU14931250
Not Available
62
Intake valve
GU14931350
Not Available
63
Tyre
0000000
Not Available
64
Flat washer
GU65933700
Not Available
65
RESSORT
GU13936300
£1,14 Unit Price incl. VAT
66
Adj.min.eng.speed screw
GU13936200
Not Available
67
Flat washer
GU14931650
Not Available
68
Spring
GU13936700
Not Available
69
Gas valve adjuster screw
GU13936600
Not Available
70
Fuel filter
GU43934000
£2,52 Unit Price incl. VAT
71
Fuel pipe union cap
GU13934600
£1,96 Unit Price incl. VAT
72
Tyre
0000000
Not Available
73
Cap fixing screw
GU10934900
Not Available
74
Tyre
0000000
Not Available
75
Tyre
0000000
Not Available
76
Float chamber
GU13934400
Not Available
77
Tyre
0000000
Not Available
78
Tyre
0000000
Not Available
79
Carburettor gasket kit
GU14939950
£37,24 Unit Price incl. VAT
80
Breather pipe
GU00823946060
Not Available

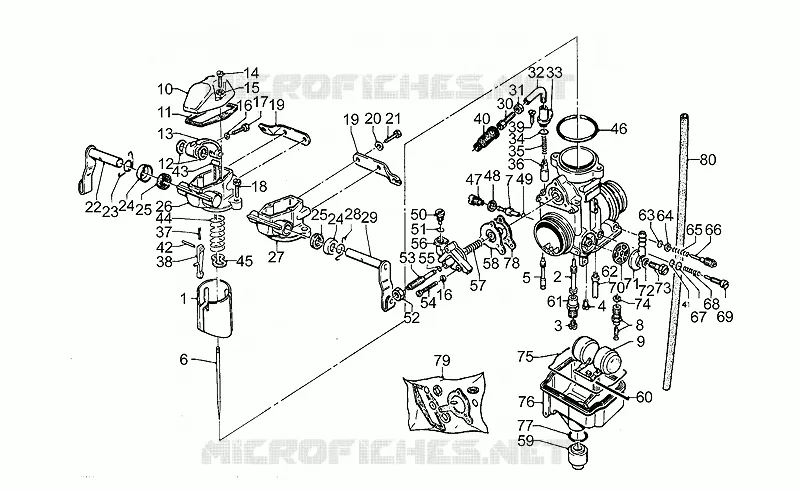

Find the detailed Carburettor MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
