1
Front fork
GU28490251
Not Available
1
Front fork
GU28490252
Not Available
1
Front fork
GU28490253
Not Available
2
Base for fork
GU28494050
Not Available
3
Hex screw
GU98072555
Not Available
4
Spacer
GU91181016
Not Available
5
Rondelle
GU95007210
£1,52 Unit Price incl. VAT
6
Upper plate
GU27493135
Not Available
7
screw
GU98612535
Not Available
8
Steering lock bush
GU18516660
Not Available
9
Cup
GU14492355
Not Available
10
LH sleeve
GU28522652
Not Available
10
LH sleeve
GU28522653
Not Available
10
LH sleeve
GU28522651
Not Available
11
RH sleeve
GU28522551
Not Available
11
RH sleeve
GU28522552
Not Available
11
RH sleeve
GU28522553
Not Available
12
Vis sans tête
GU96508021
£24,73 Unit Price incl. VAT
13
screw
GU98622312
Not Available
14
Rondelle
GU95100116
£1,60 Unit Price incl. VAT
15
Fork arm
GU14525401
Not Available
17
Gasket ring
GU90706238
£0,77 Unit Price incl. VAT
18
Oil seal
GU90403449
£11,29 Unit Price incl. VAT
19
Dust cover
GU14524500
£17,89 Unit Price incl. VAT
20
Right shock absorber
GU28526450
Not Available
21
pipe
GU14527800
Not Available
22
Fork pump ring
GU14527900
Not Available
23
Spring
GU17526960
Not Available
24
Return spring
GU18526660
Not Available
25
Spacer
GU18527960
Not Available
26
Bague seeger
GU90271014
£0,89 Unit Price incl. VAT
27
Lower cup
GU14527601
Not Available
28
screw
GU98622535
Not Available
29
Garniture
GU10528900
£4,45 Unit Price incl. VAT
31
Vis M10X40
GU98620540
£1,94 Unit Price incl. VAT
32
Nut
GU92781100
Not Available
33
RH sleeve
GU28496150
Not Available
34
LH sleeve
GU28496250
Not Available
35
Ring
GU17492700
Not Available
36
Bouchon tube
GU18513460
£15,96 Unit Price incl. VAT
37
Rondelle bouchon fourreau
GU18513560
£2,12 Unit Price incl. VAT
38
plate
GU285289501
Not Available
39
Cup
GU14494600
Not Available
40
Roulement roul.con.
GU92249225
£80,94 Unit Price incl. VAT
41
Clearance washer
GU14516700
£22,25 Unit Price incl. VAT
42
Pare-poussière
GU14517000
£7,92 Unit Price incl. VAT
43
Steering shock absorber
GU17530260
Not Available
44
Washer 5,3x10x0,5
GU95100121
Not Available
45
screw
GU98052325
£0,56 Unit Price incl. VAT
46
Vis M6X20
GU98054320
£0,96 Unit Price incl. VAT
47
Rondelle
GU95000206
£1,02 Unit Price incl. VAT
48
Ecrou M6x1
GU92630106
£5,03 Unit Price incl. VAT
49
screw
GU98074416
Not Available
50
screw
GU98074420
Not Available
51
Nylon washer
GU18526560
Not Available
52
Rear shock absorber
GU28999263
Not Available
53
Spring
GU28552350
Not Available
54
Silent-block
GU14551655
Not Available
55
Flat washer
GU95004215
£1,24 Unit Price incl. VAT
56
Washer
GU95100337
£0,61 Unit Price incl. VAT
57
Nut
GU92602210
Not Available
58
Nut
GU92602208
Not Available
59
Rondelle élastique
GU61270300
£1,70 Unit Price incl. VAT
60
Plate
GU19436600
Not Available
61
Rondelle
GU95100239
£2,04 Unit Price incl. VAT
62
RONDELLE
GU95100524
£10,87 Unit Price incl. VAT
63
pipe
GU28556150
Not Available
64
Soupape air
GU28556250
£41,24 Unit Price incl. VAT
65
Copper washer
GU28556350
£0,65 Unit Price incl. VAT
66
Vis percée
GU28556450
£25,48 Unit Price incl. VAT
67
Left shock absorber
GU28521050
Not Available
68
Air valve
GU28528250
Not Available
69
pipe
GU28529650
Not Available
70
Nut
GU14936400
Not Available
71
Notched washer
GU95021106
Not Available
72
screw
GU98054314
£0,49 Unit Price incl. VAT

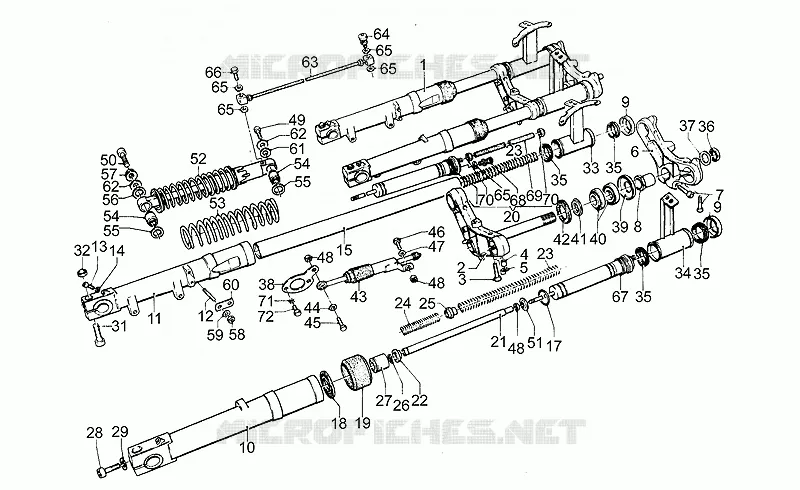

Find the detailed Front fork MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
