Engine displacement
1000
2
Model
LE-MANS
3
Year
1990
4
Trim
Le Mans
5
Parts Catalog
Frame
6
Parts Diagram
Parts Catalog
Fuel tank
by
Frame-shock absorber
Frame
1
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
20
21
22
23
23
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
39
40
41
42
43
44
45
46
47
48
49
50
1
Frame
GU28400191
Not Available
1
Frame
GU28400179
Not Available
1
Frame
GU28400178
Not Available
1
Frame
GU28400190
Not Available
1
Frame
GU28400160
Not Available
2
Lock
GU19782520
Not Available
3
Tap.roller bearing
GU92249225
£80,94 Unit Price incl. VAT
4
Rubber spacer
GU14109000
Not Available
5
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
6
Pad
GU39103400
£10,22 Unit Price incl. VAT
7
screw
GU98054318
£0,94 Unit Price incl. VAT
8
Disc
GU39103500
Not Available
9
Notched washer
GU95021106
Not Available
10
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
11
Stud bolt
GU28103260
£16,84 Unit Price incl. VAT
12
Washer
GU95000208
£5,23 Unit Price incl. VAT
13
Captive nut
GU92660801
£2,04 Unit Price incl. VAT
14
screw
GU98613630
£6,19 Unit Price incl. VAT
15
Notched washer
GU95021112
£0,65 Unit Price incl. VAT
16
Nut
GU92602312
£1,58 Unit Price incl. VAT
17
Tie rod
GU28429560
Not Available
18
Washer
GU95001213
Not Available
19
Nut
GU92601312
Not Available
20
Cover
GU93180080
£1,98 Unit Price incl. VAT
21
Plate
GU14418200
Not Available
22
Hex screw
GU98054416
£1,02 Unit Price incl. VAT
23
Washer
GU95004208
£0,70 Unit Price incl. VAT
24
Spring washer
GU95021108
£1,13 Unit Price incl. VAT
25
Nut
GU92602208
Not Available
26
Side panel fixing bracket
GU28478360
Not Available
27
screw
GU98054330
£0,29 Unit Price incl. VAT
28
Spacer
GU91180613
Not Available
29
Washer
GU95000206
£1,02 Unit Price incl. VAT
30
RH side handle
GU28464360
Not Available
31
LH side handle
GU28464361
Not Available
32
RH plate
GU28462460
Not Available
33
LH plate
GU28462560
Not Available
34
Lock
GU27468720
Not Available
35
screw
GU98054312
£1,02 Unit Price incl. VAT
36
Nut
GU92630105
£1,68 Unit Price incl. VAT
37
Covers assy
GU28462060
Not Available
38
screw
GU98612416
Not Available
39
Washer
GU95001208
Not Available
40
Nut
GU92602208
Not Available
41
screw
GU98612425
£0,91 Unit Price incl. VAT
42
Washer
GU95000208
£5,23 Unit Price incl. VAT
43
Washer
GU95000205
£0,96 Unit Price incl. VAT
44
Plate
GU28666060
£25,04 Unit Price incl. VAT
45
Nut
GU92602206
£1,68 Unit Price incl. VAT
46
Spacer
GU91180605
£10,21 Unit Price incl. VAT
47
Pad
GU28109040
Not Available
48
Cup
GU14494600
Not Available
49
Clearance washer
GU14516700
£22,25 Unit Price incl. VAT
50
Dust cover
GU14517000
£7,92 Unit Price incl. VAT

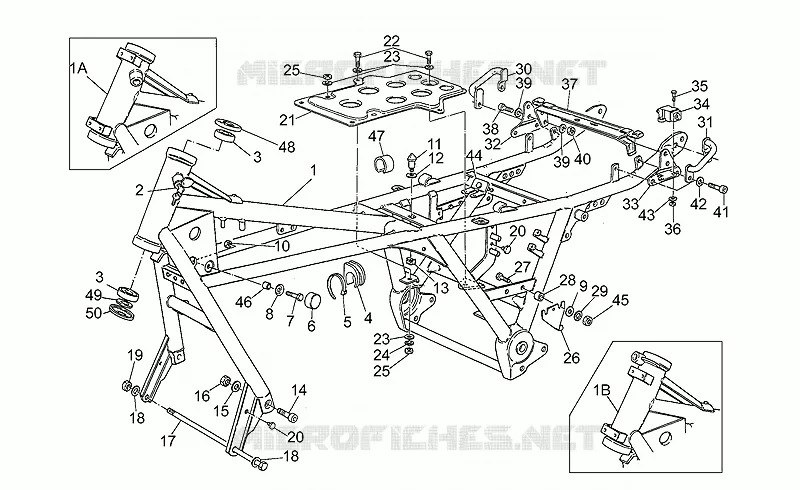

Find the detailed Frame MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
