Engine displacement
1000
2
Model
LE-MANS
3
Year
1986
4
Trim
Le Mans
5
Parts Catalog
Front/Rear mudguard
6
Parts Diagram
Parts Catalog
Handlebar-controls, 1st series
by
Footrests-Stands
Front/Rear mudguard
1
2
3
4
5
6
6
7
7
8
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
Front mudguard
GU28434371
Not Available
1
Front mudguard
GU28434365
Not Available
1
Front mudguard
GU284343601
Not Available
2
screw
GU98230816
£1,58 Unit Price incl. VAT
3
Splash guard
GU28438760
Not Available
4
screw
GU98054325
Not Available
5
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT
6
Washer 6,4x12x1,2
GU95100141
£1,02 Unit Price incl. VAT
7
Washer 6,2X18X1
GU95100118
£1,87 Unit Price incl. VAT
8
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
9
Rear mudguard
GU28437078
Not Available
10
Rear mudguard supp.
GU28439178
Not Available
11
Hex socket screw
GU98622425
£6,13 Unit Price incl. VAT
12
Spring washer
GU95021108
£1,13 Unit Price incl. VAT
13
Nut
GU92630508
£1,67 Unit Price incl. VAT
14
O-ring
GU90706092
£0,89 Unit Price incl. VAT
15
Bush
GU28436460
£3,47 Unit Price incl. VAT
16
Rubber spacer
GU91551061
Not Available
17
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
18
Pad
GU19705900
£4,74 Unit Price incl. VAT
19
Eyelet
GU28659740
£12,58 Unit Price incl. VAT
20
Front mudguard
GU28434479
Not Available
20
Front mudguard
GU284344781
Not Available
20
Front mudguard
GU28434490
Not Available
21
Stabilization plate
GU28436678
Not Available
22
screw
GU98230830
Not Available
23
O-ring
GU90706092
£0,89 Unit Price incl. VAT
24
Bush
GU28436460
£3,47 Unit Price incl. VAT
25
Spacer 8,5x17x13
GU91180823
£14,90 Unit Price incl. VAT
26
Spacer
GU91180825
Not Available
27
Spacer
GU91180818
Not Available
28
Plate
GU28435578
Not Available
29
Hex socket screw
GU98622425
£6,13 Unit Price incl. VAT
30
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
31
Pipe guide
GU28659778
Not Available

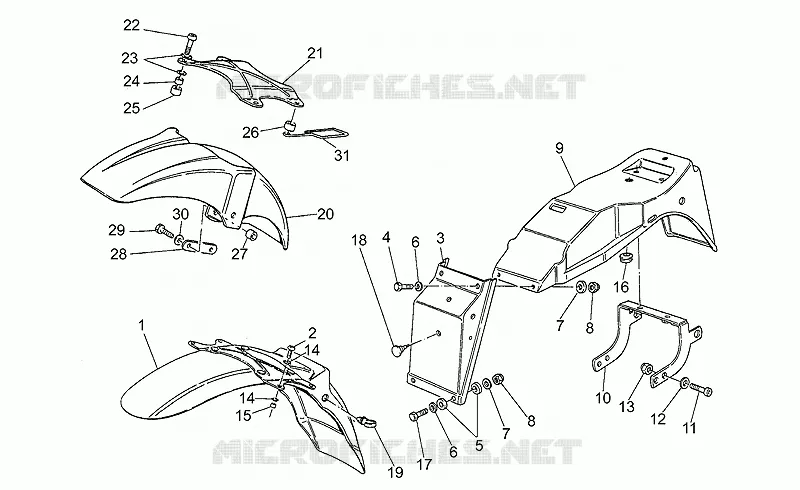

Find the detailed Front/Rear mudguard MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
