Front fork, 1st series for MOTO GUZZI LAVERDA SCARABEO GT from 1989

Free shipping for all orders to United Kingdom over £150! See conditions.

Front fork, 1st series

1

Lower plate

GU28494033

Not Available

2

Nylon washer

GU18526560

Not Available

3

Hex socket screw M10x60

GU98620560

£3,65 Unit Price incl. VAT

4

Washer 10,2x18x2

GU95004210

£0,96 Unit Price incl. VAT

5

Spacer

GU91181110

Not Available

6

Stem plug washer

GU18513560

£2,12 Unit Price incl. VAT

7

Upper plate

GU28493133

Not Available

8

screw

GU98620540

£1,94 Unit Price incl. VAT

9

Steering lock bush

GU18516660

Not Available

10

Plug

GU18513460

£15,96 Unit Price incl. VAT

11

RH sleeve

GU28522533

Not Available

12

LH sleeve

GU28522633

Not Available

13

Oil seal

GU90403449

£11,29 Unit Price incl. VAT

14

Stud bolt

GU96508021

£24,73 Unit Price incl. VAT

15

screw

GU98622312

Not Available

16

Washer 6,25x10x1,5

GU95100116

£1,60 Unit Price incl. VAT

17

Sleeve

GU63525400

Not Available

18

Dust cover

GU14524500

£17,89 Unit Price incl. VAT

19

Fork shock absorber

GU29526400

Not Available

20

screw

GU98620435

Not Available

21

pipe

GU14527800

Not Available

22

Spring

GU18526960

£106,94 Unit Price incl. VAT

23

Spacer

GU18527960

Not Available

24

Return spring

GU18526660

Not Available

25

Fork pump ring

GU14527900

Not Available

26

Circlip

GU90271014

£0,89 Unit Price incl. VAT

27

Gasket ring

GU90706238

£0,77 Unit Price incl. VAT

28

Cup

GU29527400

Not Available

29

Dowel

GU95510308

£0,42 Unit Price incl. VAT

30

Nut

GU92781100

Not Available

31

Nut

GU92602308

£0,96 Unit Price incl. VAT

32

Plug

GU23943410

£3,06 Unit Price incl. VAT

33

RH support

GU23496110

Not Available

33

RH support

GU28496133

Not Available

34

LH support

GU23496210

Not Available

35

Handlebar fixing plate

GU28500233

Not Available

36

Spacer

GU23497910

£3,97 Unit Price incl. VAT

37

Hex socket screw

GU98622425

£6,13 Unit Price incl. VAT

41

Gasket

GU10528900

£4,45 Unit Price incl. VAT

42

Front shock abs.conn.pipe

GU29529600

Not Available

43

Copper washer

GU28556350

£0,65 Unit Price incl. VAT

44

Air valve

GU28556250

£41,24 Unit Price incl. VAT

45

Bored screw

GU28556450

£25,48 Unit Price incl. VAT

47

screw

GU98620590

Not Available

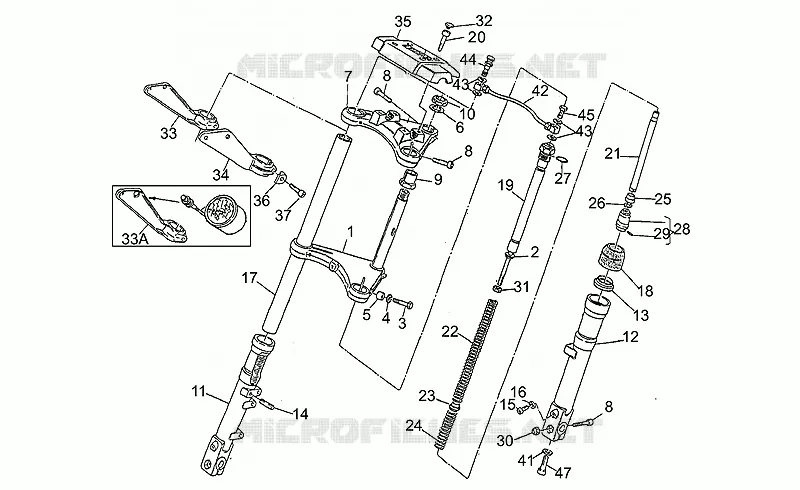

Find the detailed Front fork, 1st series MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for GT

Battery, 1st series

Body

Bevel gear

Dashboard, 1st s., grey

Dashboard, 2nd s., blue

Dashboard,23rd s., white

Headlight-Horn

Taillight

Air filter

Front fork, 1st series

Front fork, 2nd series

Swing arm, 1st s., 38mm

Swing arm, 2nd s., 45 mm

Rear brake m.cyl. mod.group

Electrical system

RH Front brake system

Front LH/rear brake system

Handlebar, 1st series

Handlebar, 2nd series

Front/rear mudguards

Foot rests - Lateral stand

Frnt wh, alloy, 1st series

Frnt wh, alloy, 2nd series

Front wh, spokes, 1st series

Front wh, spokes, 2nd series

Rear wh, alloy, 1st series

Rear wh, alloy, 2nd series

Rear wh, spokes, 1st series

Rear wh, spokes, 2nd series

Front shock abs.,1st series

Frame

El.Ign.from engine VT24596

Fuel supply

Exhaust unit

Exhaust unit 1991-D

Gear lever

Drive shaft

Crankshaft 1991-D

Driven shaft

Gear box

Carburettors

Carburettors 1991-D

Crankcase

Clutch

Ducati alternator

Valeo starter motor

Oil pump

Oil pump 1991-D

Transmission cage

Cylinder head

Cylinder head 1991-D

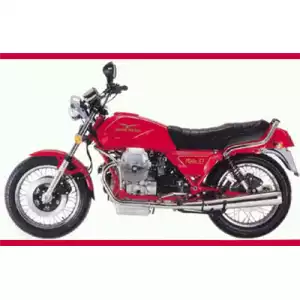

MOTO GUZZI LAVERDA SCARABEO GT 1989
