1
Engine displacement
1000
2
Model
DAYTONA
3
Year
1996
4
Trim
Daytona Racing
5
Parts Catalog
Electrical system
6
Parts Diagram
Parts Catalog
Swing arm
by
Handlebar - Controls
Electrical system
1
2
3
4
5
6
7
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
1
Electrical system
GU30747101
Not Available
2
Dashboard cable
GU30747200
Not Available
3
Starter motor wiring harness
GU30726400
Not Available
4
Fuse holder box
GU30743000
Not Available
5
Fuse 15A
GU28742560
Not Available
6
screw
GU98622218
Not Available
7
Washer 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
8
Nut
GU92630105
£1,68 Unit Price incl. VAT
9
Wire
GU30748400
Not Available
10
Battery YB 16B-A
GU30704500
Not Available
11
Pad
GU30707300
Not Available
12
Breather pipe
GU00823946060
Not Available
13
Fixing snap
GU14102600
£16,15 Unit Price incl. VAT
14
Battery hook
GU30705700
£12,62 Unit Price incl. VAT
15
Fuse table decal
GU30945000
Not Available
16
Flasher unit
GU17750520
Not Available
17
Relay Siemens A302/B1008
GU30732560
£40,60 Unit Price incl. VAT
18
Bracket
GU30477000
Not Available
19
screw
GU98620235
£0,96 Unit Price incl. VAT
20
Washer
GU95004205
£1,13 Unit Price incl. VAT
21
Spacer
GU91180605
£10,21 Unit Price incl. VAT
22
Spacer
GU91180709
£13,40 Unit Price incl. VAT
23
Rubber spacer
GU91551080
£4,69 Unit Price incl. VAT
24
Washer
GU95100060
Not Available
25
screw
GU98054216
£1,02 Unit Price incl. VAT
26
Captive nut
GU92660501
£0,96 Unit Price incl. VAT
27
LH plate
GU30477200
£10,22 Unit Price incl. VAT
28
Cover
GU30477300
Not Available
29
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
30
Taillight wiring harn.
GU30747300
Not Available
31
Cap
GU19707100
£12,65 Unit Price incl. VAT
32
RH clamp
GU30477101
Not Available

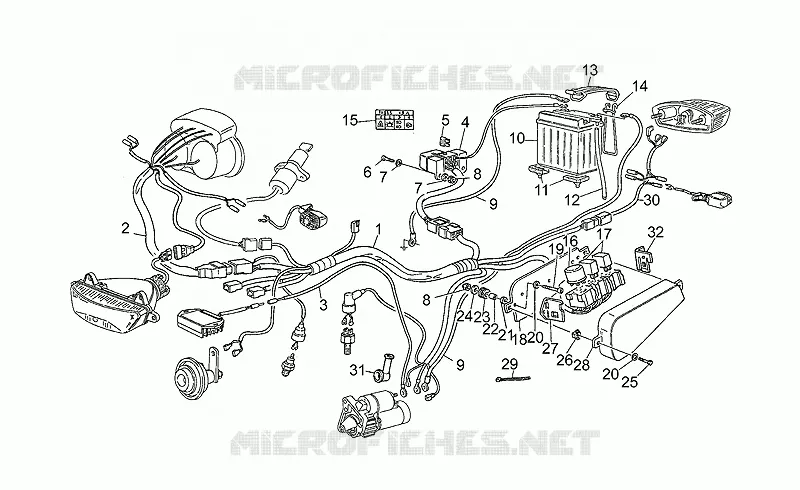

Find the detailed Electrical system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
