1
Engine displacement
1000
2
Model
DAYTONA
3
Year
1994
4
Trim
Daytona
5
Parts Catalog
Headlight-Horn
6
Parts Diagram
Parts Catalog
Dashboard
by
Taillight
Headlight-Horn
1
1
2
2
3
3
4
5
6
7
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
1
Cpl headlightsteering headligh
GU30740515
Not Available
1
Headlight
GU30740520
Not Available
1
Headlight
GU30740500
Not Available
2
Lamp 12V-55/60W
GU93450232
£23,02 Unit Price incl. VAT
3
Lamp 12V-3W
GU93450120
Not Available
3
Lamp 12V-5W
GU93450150
Not Available
4
Lampholder
GU14756255
Not Available
5
Light frame
GU30741800
Not Available
6
Hex socket screw
GU98610335
£1,26 Unit Price incl. VAT
7
Washer
GU95000206
£1,02 Unit Price incl. VAT
8
Spring
GU94321124
Not Available
9
Hex socket screw
GU98622325
£1,02 Unit Price incl. VAT
10
Washer 6,15x11x0,8
GU95004206
Not Available
11
Rubber spacer
GU91551080
£4,69 Unit Price incl. VAT
12
Spacer
GU91180709
£13,40 Unit Price incl. VAT
13
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
14
Horn
GU30743700
Not Available
15
Bracket
GU30744200
Not Available
16
screw
GU98622415
Not Available
17
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
18
LH front turn indicator
GU30750601
Not Available
18
RH front turn indicator
GU30750600
Not Available
19
Lamp
GU93450127
£3,11 Unit Price incl. VAT
20
Turn indicator lens
GU30753701
£9,42 Unit Price incl. VAT
20
Turn indicator lens
GU30753700
£13,18 Unit Price incl. VAT
21
screw
GU98230620
£2,04 Unit Price incl. VAT
22
4-way connector
GU17756160
Not Available
23
Lampholder
GU14768650
Not Available
23
Washer 5,3x10x0,5
GU95100121
Not Available
24
Reflector, amber
GU14781670
£23,59 Unit Price incl. VAT

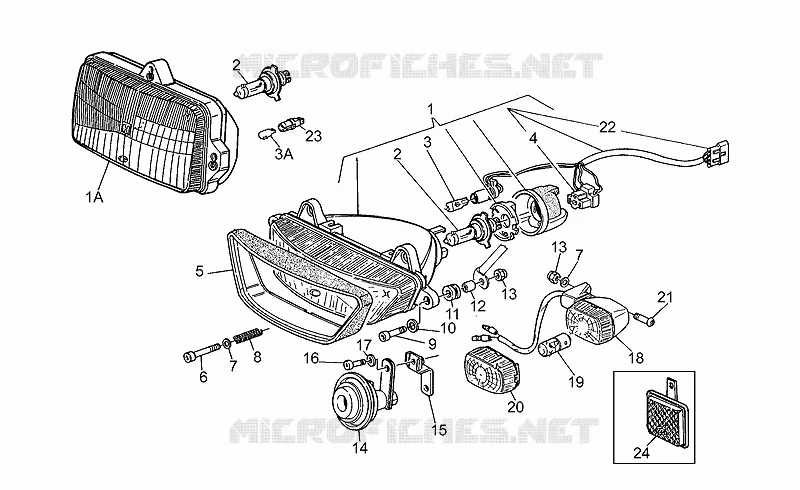

Find the detailed Headlight-Horn MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
