Parts Catalog
Transmission cage
6
Parts Diagram
Parts Catalog
Oil pump
by
Heads
Transmission cage
1
2
3
3
4
4
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1
Transmission cage
GU30200200
£514,30 Unit Price incl. VAT
2
Gasket ring 35x47x7
GU90403547
£10,73 Unit Price incl. VAT
3
Roller bearing 17x35x15
GU92256218
£105,14 Unit Price incl. VAT
4
plate
GU14213803
£65,10 Unit Price incl. VAT
5
Hex socket screw
GU98622316
Not Available
6
Washer 6,4x10x0,7
GU14217901
Not Available
7
Ball bearing AF/AS 25x52
GU92218424
Not Available
8
Roller bearing AS 17x47x14
GU92234717
£182,04 Unit Price incl. VAT
9
Pin
GU95512081
£4,34 Unit Price incl. VAT
10
Gasket
GU14201110
£2,00 Unit Price incl. VAT
11
Box cover
GU30200800
Not Available
12
O-ring 13,95x2,92
GU90706140
£1,25 Unit Price incl. VAT
13
Ball bearing AP 17x47x14
GU92201417
Not Available
14
screw
GU14237800
£21,61 Unit Price incl. VAT
15
Low nut M12x1,25
GU92602512
£1,57 Unit Price incl. VAT
16
Hex socket screw
GU98622325
£1,02 Unit Price incl. VAT
17
screw M6x35
GU98620335
£1,14 Unit Price incl. VAT
18
Neutral indicator switch
GU12207200
Not Available
19
Gasket
GU12207700
Not Available
20
Washer 6,4x10x0,7
GU14217901
Not Available
21
screw
GU98812316
Not Available
22
Cover
GU93180220
£3,68 Unit Price incl. VAT
23
Oil plug
GU12022600
£36,13 Unit Price incl. VAT
24
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
25
Oil level plug
GU95980214
£12,80 Unit Price incl. VAT
26
Gasket
GU10528900
£4,45 Unit Price incl. VAT
27
Oil breather valve
GU14204955
£21,26 Unit Price incl. VAT
28
Rubber pipe 12,5X7,8 5/16"
GU00823956080
£45,66 Unit Price incl. VAT
29
Lever return spring
GU94321067
£1,86 Unit Price incl. VAT
30
Pawl
GU55234700
£82,48 Unit Price incl. VAT
31
Gasket ring 35x47x7/6,5
GU90403548
Not Available
32
Gearbox housing support
GU30202300
Not Available
33
Gasket 8,25x15x1
GU12154200
£2,45 Unit Price incl. VAT
34
Cover
GU95980610
£26,23 Unit Price incl. VAT
35
screw
GU98822325
Not Available
36
Cover
GU93180245
£2,63 Unit Price incl. VAT
37
Bush
GU91181006
£8,58 Unit Price incl. VAT
38
screw M8x22
GU98054422
£1,02 Unit Price incl. VAT
39
Washer
GU95004208
£0,70 Unit Price incl. VAT
40
Gasket set
GU30999100
Not Available
41
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
42
Gear box assy
GU30991500
£4 032,42 Unit Price incl. VAT

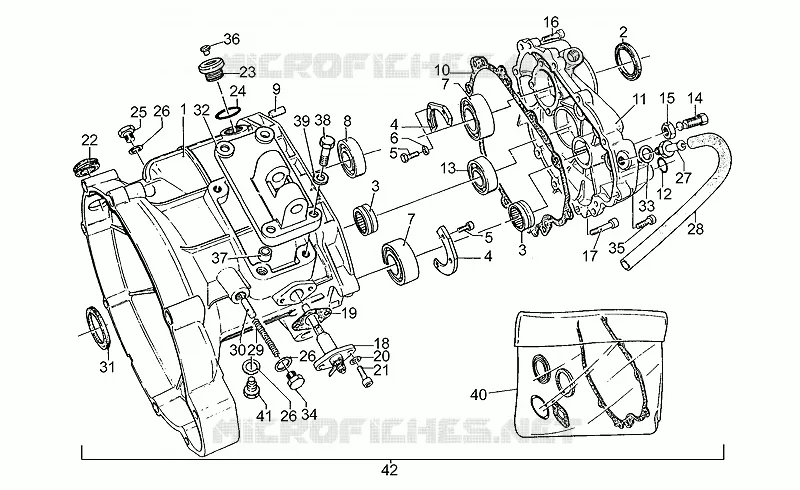

Find the detailed Transmission cage MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
