1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2001
4
Trim
California Special Sport
5
Parts Catalog

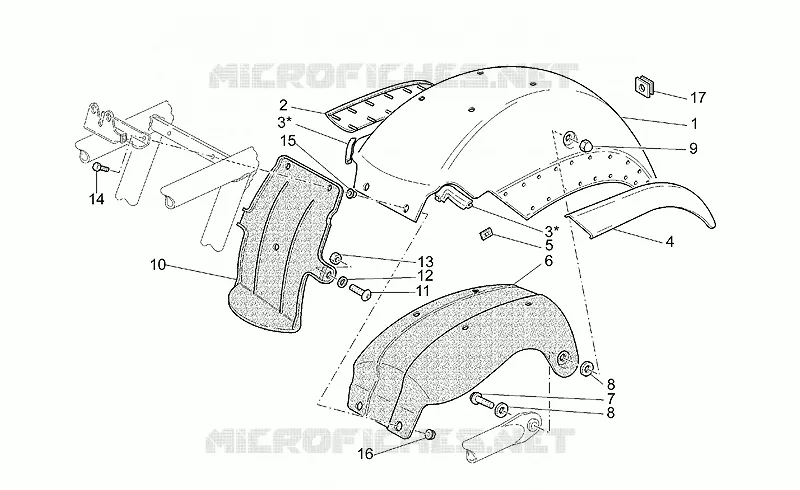

Rear mudguard
6
Parts Diagram
Parts Catalog
Front mudguard
by
Foot rests
Rear mudguard
1
2
3
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
1
Rear mudguard, black
GU03437160
£520,79 Unit Price incl. VAT
1
Rear mudguard blank
GU03437130
£461,48 Unit Price incl. VAT
2
Front RH side profile ch.plate
GU03437730
£71,71 Unit Price incl. VAT
3
Gasket
GU00155930171
£20,12 Unit Price incl. VAT
4
Rear LH side profile ch.plate
GU03437830
Not Available
5
Clip
GU03922230
£0,40 Unit Price incl. VAT
6
U-bolt under rear mudguard
GU03437430
£12,70 Unit Price incl. VAT
7
Screw w/ flange
GU98220835
Not Available
8
Washer 8,5x24x2
GU95005312
£1,94 Unit Price incl. VAT
9
Cap nut M8x1,25
GU92787008
£1,34 Unit Price incl. VAT
10
Splash guard
GU03438030
£27,47 Unit Price incl. VAT
11
Hex socket screw M6x25
GU98230625
£4,78 Unit Price incl. VAT
12
Washer
GU95001205
£1,64 Unit Price incl. VAT
13
Nut
GU92630107
Not Available
14
Hex socket screw M6x22
GU98350325
£1,02 Unit Price incl. VAT
15
Spacer
GU03578730
Not Available
16
Nut
GU92650006
£1,26 Unit Price incl. VAT
17
Rubber spacer
GU91551099
£2,48 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
