1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2001
4
Trim
California Jackal
5
Parts Catalog
Electrical system
6
Parts Diagram
Parts Catalog
Swing arm
by
Front brake system
Electrical system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
40
1
Injection wiring
GU03725830
Not Available
2
CDI unit assy
GU03729530
£642,90 Unit Price incl. VAT
3
Relay Siemens A302/B1008
GU30732560
£40,60 Unit Price incl. VAT
4
Fuse 15A
GU28742560
Not Available
5
Plate
GU03729230
£13,26 Unit Price incl. VAT
6
Block
GU93221330
£16,58 Unit Price incl. VAT
7
screw
GU98054110
£1,20 Unit Price incl. VAT
8
Washer
GU95000204
£0,59 Unit Price incl. VAT
9
screw
GU98622310
£1,26 Unit Price incl. VAT
10
Special washer
GU61013800
£1,26 Unit Price incl. VAT
11
Captive nut
GU92660601
£1,58 Unit Price incl. VAT
12
HT cable
GU17718350
Not Available
13
Cap
GU14717600
£3,04 Unit Price incl. VAT
14
Sparkplug cap NGK
GU30717410
Not Available
15
Spark plug NGK BPR6ES
GU30717061
£8,90 Unit Price incl. VAT
16
Phase/revolution sensor
GU01721600
£331,45 Unit Price incl. VAT
17
screw
GU98622212
£1,20 Unit Price incl. VAT
18
Air temp. Sensor
GU30729331
£54,77 Unit Price incl. VAT
19
O-ring
GU90706141
Not Available
20
Gasket
GU01722703
£2,65 Unit Price incl. VAT
20
Gasket 1 mm
GU01722704
£2,64 Unit Price incl. VAT
20
Gasket 0,3 mm
GU01722700
£2,65 Unit Price incl. VAT
20
Gasket 0,5 mm
GU29722760
£2,65 Unit Price incl. VAT
20
Gasket 0,4 mm
GU01722701
£2,65 Unit Price incl. VAT
20
Gasket 0,6 mm
GU01722702
£2,65 Unit Price incl. VAT
20
Gasket 1,5 mm
GU01722705
£2,65 Unit Price incl. VAT
21
HT coil
GU30716500
£206,63 Unit Price incl. VAT
22
Coil holder
GU28716748
Not Available
23
screw
GU98622310
£1,26 Unit Price incl. VAT
24
Special washer
GU61013800
£1,26 Unit Price incl. VAT
25
Hex socket screw
GU98622125
£0,50 Unit Price incl. VAT
26
Nut
GU92602206
£1,68 Unit Price incl. VAT
27
Washer 4,3x8x1,5
GU95021104
£1,26 Unit Price incl. VAT
28
Silent-block
GU93222020
Not Available
29
Sensor support
GU30728230
£12,37 Unit Price incl. VAT
30
screw
GU98610110
£1,02 Unit Price incl. VAT
31
Fuse holder box
GU30732200
£9,80 Unit Price incl. VAT
32
Relais support
GU30732400
£12,34 Unit Price incl. VAT
33
Nut
GU92601003
Not Available
34
Oil temperature sensor
GU29729461
£149,87 Unit Price incl. VAT
35
Sensor support
GU03163330
£68,51 Unit Price incl. VAT
36
Washer 4,3x8x1,5
GU95021104
£1,26 Unit Price incl. VAT
37
Nut
GU92630204
£1,26 Unit Price incl. VAT
38
Fuel pump wiring
GU03738500
£45,54 Unit Price incl. VAT
39
Cap
GU30759600
£3,64 Unit Price incl. VAT
40
Washer
GU95004205
£1,13 Unit Price incl. VAT

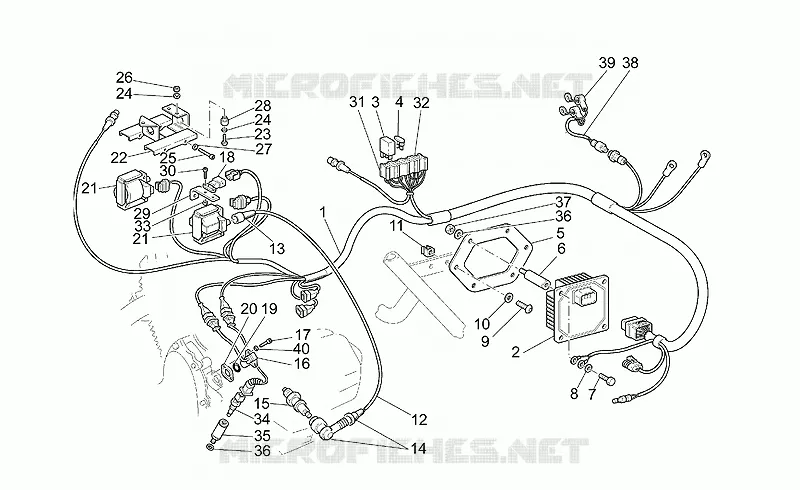

Find the detailed Electrical system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
